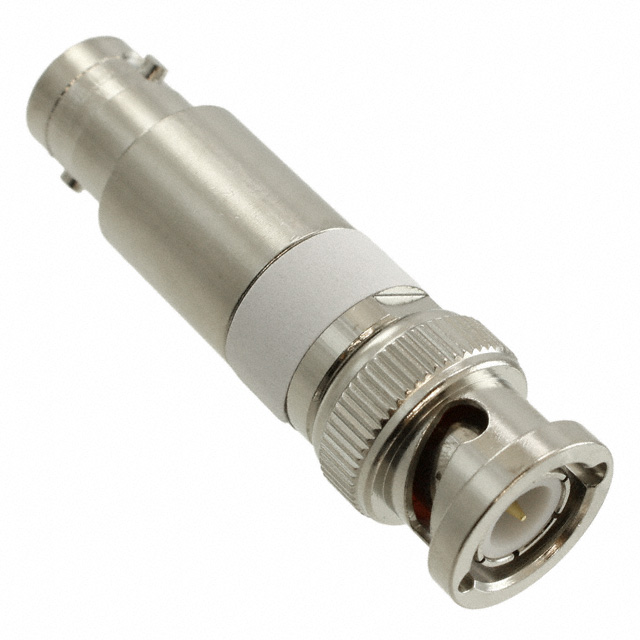

Specification	5297

Adapter Series	BNC to BNC
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Same Series
Convert From (Adapter End)	Male Pin, BNC Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	BNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Filter
Frequency - Max	500 MHz
Mounting Type	Free Hanging (In-Line)
Style	Straight
