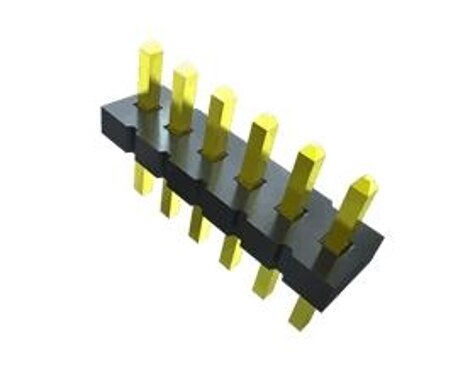

Specification	FTS-112-02-H-D-S

Connector Type	Header, Cuttable
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	3 µin
Contact Length - Mating	0.075 in
Contact Length - Post	0.09 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	3.4 A
Fastening Type	Push-Pull
Features	End Shrouds
Insulation Color	Black
Insulation Height	0.034 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.199 in
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

FTS Series

...

Part	Number of Rows	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Shape	Insulation Height	Pitch - Mating	Insulation Color	Current Rating (Per Contact)	Termination	Mounting Type	Contact Material	Style	Shrouding	Insulation Material	Number of Positions Loaded	Number of Positions	Contact Type	Features	Connector Type	Contact Finish - Post	Fastening Type	Contact Length - Mating	Contact Finish - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Overall Contact Length	Contact Length - Post
Samtec Inc. FTS-110-01-LM-DV-P	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	Pick and Place	Cuttable Header	Tin	Push-Pull	0.12 in	Gold	10 µin	0.05 in
Samtec Inc. FTS-110-02-F-DV-S-P	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	End Shrouds Pick and Place	Cuttable Header	Tin	Push-Pull	0.075 in	Gold	3 µin	0.05 in
Samtec Inc. FTS-110-01-L-DV-A	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	Board Guide	Cuttable Header	Tin	Push-Pull	0.12 in	Gold	10 µin	0.05 in
Samtec Inc. FTS-110-03-G-DV-A	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	Board Guide	Cuttable Header	Gold	Push-Pull	0.065 in	Gold	10 µin	0.05 in	3 µin
Samtec Inc. FTS-110-01-S-D	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Through Hole	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin		Cuttable Header	Tin	Push-Pull	0.12 in	Gold	30 µin	0.05 in		0.244 in	0.09 in
Samtec Inc. FTS-110-04-F-DV-P	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	Pick and Place	Cuttable Header	Tin	Push-Pull	0.15 in	Gold	3 µin	0.05 in
Samtec Inc. FTS-110-01-S-DV-P-TR	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	Pick and Place	Cuttable Header	Tin	Push-Pull	0.12 in	Gold	30 µin	0.05 in
Samtec Inc. FTS-110-01-F-DV-TR	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin		Cuttable Header	Tin	Push-Pull	0.12 in	Gold	3 µin	0.05 in
Samtec Inc. FTS-110-02-S-DV-TR	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin		Cuttable Header	Tin	Push-Pull	0.075 in	Gold	30 µin	0.05 in
Samtec Inc. FTS-110-01-F-DV-A	2	125 °C	-55 °C	UL94 V-0	Square	0.034 in	0.05 in	Black	3.4 A	Solder	Surface Mount	Phosphor Bronze	Board Board or Cable	Unshrouded	Liquid Crystal Polymer (LCP)	All	20	Male Pin	Board Guide	Cuttable Header	Tin	Push-Pull	0.12 in	Gold	3 µin	0.05 in
