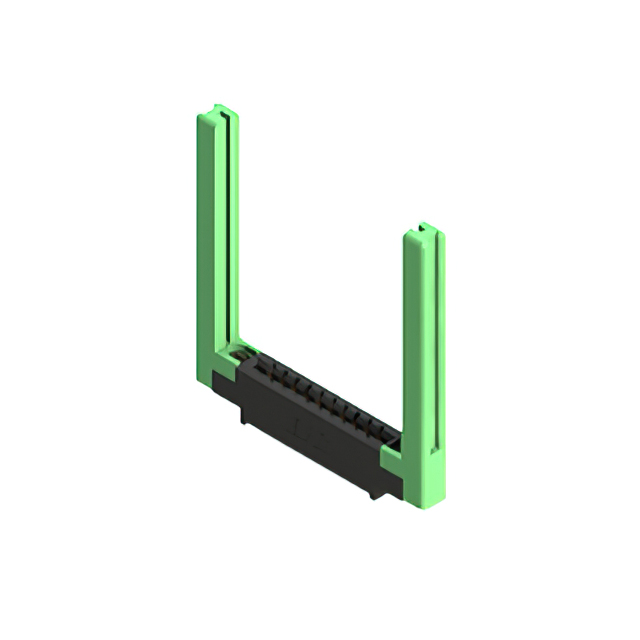

387-010-520-658

Active

EDAC Inc.

CONN EDGE SGL FMALE 10POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

387-010-520-658

Active

EDAC Inc.

CONN EDGE SGL FMALE 10POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	387-010-520-658

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	10
Number of Positions/Bay/Row [custom]	10
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	1

387-010 Series

...

Part	Material - Insulation	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Read Out	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Contact Type	Gender	Termination Rows	Mounting Type	Pitch [x]	Pitch [x]	Termination	Contact Material	Number of Rows	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Card Type	Number of Positions/Bay/Row [custom]	Flange Feature	Flange Feature
EDAC Inc. 387-010-559-103	Polyester Thermoplastic	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole Right Angle	0.156 in	3.96 mm	Wire Wrap	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-523-668	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-520-658	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-524-112	Polyester Thermoplastic	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm	Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-540-603	Polyester Thermoplastic	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Wire Wrap	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-524-602	Polyester Thermoplastic				Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10	3.25 mm	0.128 in
EDAC Inc. 387-010-544-668	Polyester Thermoplastic		4-40 Threaded Insert Top Mount Opening		Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Wire Wrap	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-523-603	Polyester Thermoplastic	0.116 in	Floating Bobbin Top Mount Opening	2.95 mm	Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-521-104	Polyester Thermoplastic	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10
EDAC Inc. 387-010-521-602	Polyester Thermoplastic				Single	10 Áin	0.25 Ám	-40 °C	105 ░C	10	Cantilever	Female	1	Through Hole	0.156 in	3.96 mm	Solder	Copper Alloy	1	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	Non Specified - Single Edge	10	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 8.72
Newark	Each	25	$ 9.53
		50	$ 9.31
		100	$ 8.86
		250	$ 8.64
		500	$ 8.33

Description

General part information

387-010 Series

10 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Black
