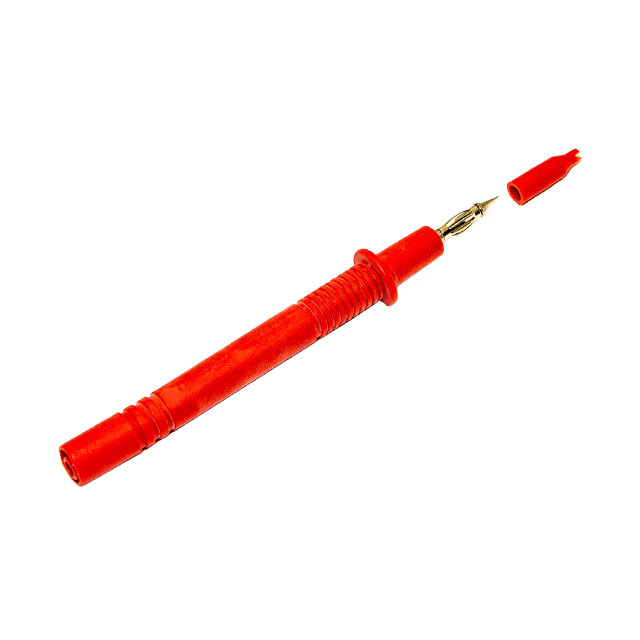

TEST PROD RED
Search across all available documentation for this part.
TEST PROD RED
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
General part information
5 A Standard Tip Red
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | BU-26103-2 | BU-26103 Series |
|---|---|---|
| Color | Red | Black, Red |
| Connection Type | Female Socket (Jack), Banana | Female Socket (Jack), Banana |
| Current Rating (Amps) | 5 A | 5 A |
| Includes | IC Insulator Cap | IC Insulator Cap |
| Length - Overall | 5.197 in | 5.197 in |
| Length - Overall | 132 mm | 132 mm |
| Material - Body | PVC | PVC |
| Material - Tip | Brass, Nickel Plated | Brass, Nickel Plated |
| Quantity | 1 Box | 1 Box |
| Ratings | CAT III | CAT III |
| Ratings | 1000 V | 1000 V |
| Voltage Rating | 1000 VDC | 1000 VDC |
TEST PROD BLACK
| Part | Length - Overall | Length - Overall | Material - Tip | Material - Body | Ratings | Ratings | Current Rating (Amps) | Color | Connection Type | Quantity | Includes | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
MUELLER ELECTRIC BU-26103-0 | 5.197 in | 132 mm | Brass, Nickel Plated | PVC | CAT III | 1000 V | 5 A | Black | Banana, Female Socket (Jack) | 1 Box | IC Insulator Cap | 1000 VDC |
MUELLER ELECTRIC BU-26103-2 | 5.197 in | 132 mm | Brass, Nickel Plated | PVC | CAT III | 1000 V | 5 A | Red | Banana, Female Socket (Jack) | 1 Box | IC Insulator Cap | 1000 VDC |
