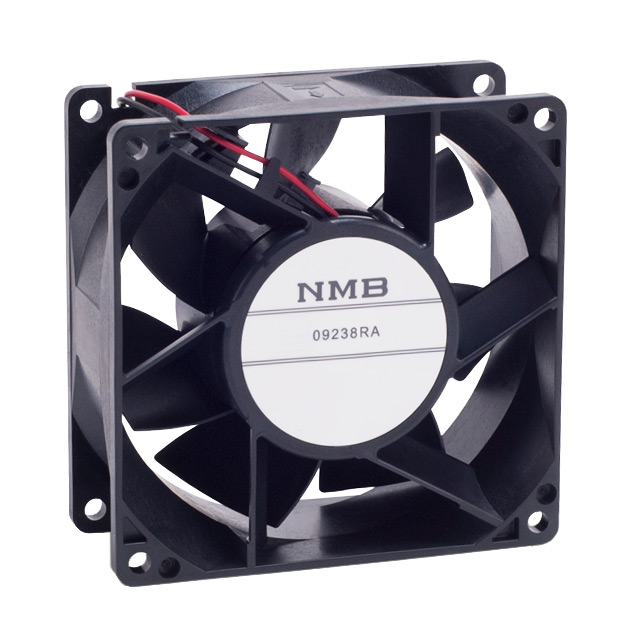

Specification	09238RA-12N-EA-00

Approval Agency	VDE, UR, CE
Bearing Type	Ball
Fan Type	Tubeaxial
Size / Dimension Height	92 mm
Size / Dimension Length	92 mm
Size / Dimension Shape	Square
Termination	2 Wire Leads
Termination Leads Count	2 leads
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Width	38 mm

09238RA Series

Part	Lifetime	Material - Frame	Material - Blade	Voltage - Rated	Ingress Protection Description	Ingress Protection IP Rating	Termination Leads Count	Termination Type	Termination	Bearing Type	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Features	Width	Fan Type	Operating Temperature (Max)	Operating Temperature (Min)	RPM	Air Flow	Static Pressure	Noise	Power (Watts)	Voltage Range (Max)	Voltage Range (Min)	Current Rating	Approval Agency
NMB TECHNOLOGIES 09238RA-12L-EL-00	100000 Hrs	Plastic	Plastic	12 VAC	Dust Tight High Temp Water Jets Waterproof	IP69K	3	Wire Leads	3 Wire Leads	Ball	92 mm	Square	92 mm	Auto Restart Locked Rotor Sensor	38.4 mm	Tubeaxial	158 °F	14 °F
NMB TECHNOLOGIES 09238RA-24P-GA-00	100000 Hrs	Plastic	Plastic	24 VAC	Dust Tight High Temp Water Jets Waterproof	IP69K	2 leads	Wire Leads	2 Wire Leads	Ball	92 mm	Square	92 mm	Auto Restart	38.4 mm	Tubeaxial	158 °F	14 °F	6700 RPM	141.3 CFM	1.04 in H2O	61 dB	22.08 W	27.6 VDC	14 VDC	0.92 A
NMB TECHNOLOGIES 09238RA-24N-ELD-0	100000 Hrs	Plastic	Plastic	24 VAC			3	Wire Leads	3 Wire Leads	Ball	92 mm	Square	92 mm	Auto Restart Locked Rotor Sensor	38 mm	Tubeaxial	158 °F	14 °F	6200 RPM	141.2 CFM	1.02 in H2O	59 dB	17.04 W	27.6 VDC	14 VDC	0.71 A
NMB TECHNOLOGIES 09238RA-12N-EA-00				12 VAC			2 leads	Wire Leads	2 Wire Leads	Ball	92 mm	Square	92 mm		38 mm	Tubeaxial											CE UR VDE
NMB TECHNOLOGIES 09238RA-24L-EAD-0				24 VAC			2 leads	Wire Leads	2 Wire Leads	Ball	92 mm	Square	92 mm	Auto Restart	38 mm	Tubeaxial	158 °F	14 °F	5000 RPM	103.8 CFM	0.57 in H2O	52.5 dB	9.6 W
NMB TECHNOLOGIES 09238RA-12L-EA-00	100000 Hrs	Plastic	Plastic	12 VAC	Dust Tight High Temp Water Jets Waterproof	IP69K	2 leads	Wire Leads	2 Wire Leads	Ball	92 mm	Square	92 mm	Auto Restart	38.4 mm	Tubeaxial	158 °F	14 °F
NMB TECHNOLOGIES 09238RA-24N-EA-00				24 VAC			2 leads	Wire Leads	2 Wire Leads	Ball	92 mm	Square	92 mm		38 mm	Tubeaxial											CE UR VDE
NMB TECHNOLOGIES 09238RA-12N-ET-00	100000 Hrs	Plastic	Plastic	12 VAC	Dust Tight High Temp Water Jets Waterproof	IP69K	3	Wire Leads	3 Wire Leads	Ball	92 mm	Square	92 mm	Auto Restart Speed Sensor (Tach)	38.4 mm	Tubeaxial	158 °F	14 °F
