DEMOBOARDTLF50211ELTOBO1
NRNDInfineon Technologies
2.2 MHZ STEP-DOWN REGULATOR 500 MA LOW QUIESCENT CURRENT
Deep-Dive with AI
DocumentsOperating Instructions EN
Technical Specifications
Parameters and characteristics for this part
| Specification | DEMOBOARDTLF50211ELTOBO1 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 500 mA |
| Frequency - Switching | 2.2 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | TLF50211EL |
| Voltage - Input [Max] | 45 V |
| Voltage - Input [Min] | 4.75 V |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DEMOBOARDTLF50211 Series

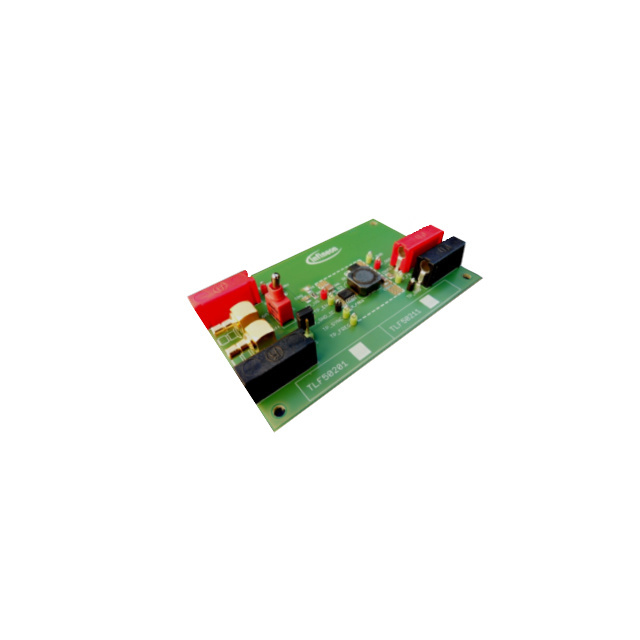

This application board enables you to test the performance of the TLF50201/211EL step down converter. It is equipped with a TLF50201EL for 5.0V output voltage. The board shows a possible space efficient layout for the core.See alsoTLF50211COREBOARD
