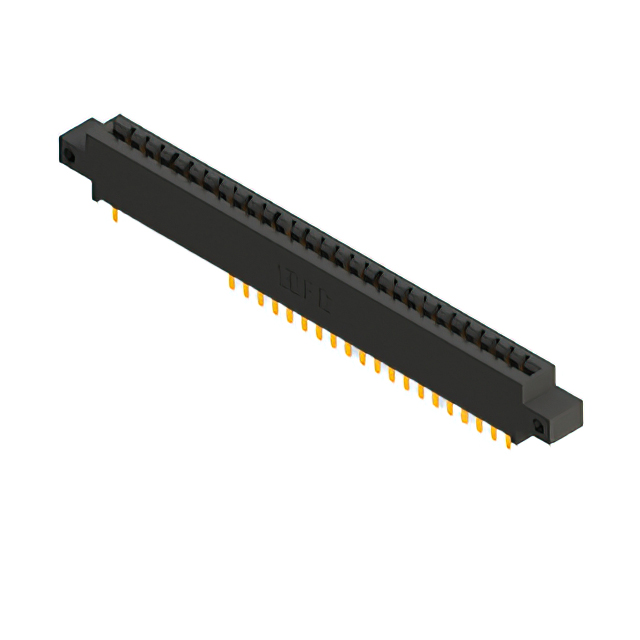

887-056-544-812
ActiveEDAC Inc.
3.96MM STRAIGHT 56P -40℃~+125℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 887-056-544-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 56 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
887-056 Series
...
| Part | Read Out | Card Type | Termination Rows | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row [custom] | Termination | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Gender | Number of Positions | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Pitch [x] | Pitch [x] | Color | Contact Finish | Flange Feature | Mounting Type | Features | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Wire Wrap | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Flush Mount M3 Threaded Insert Top Opening | Through Hole | |||||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Solder | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | M3 Threaded Insert Top Mount Opening | Board Edge Straddle Mount | Card Extender | ||||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Solder | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Through Hole Right Angle | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Solder | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Flush Mount Top Opening Unthreaded | Board Edge Straddle Mount | Card Extender | 3.96 mm | 0.156 in | ||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Wire Wrap | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Floating Bobbin Flush Mount | Through Hole | 2.95 mm | 0.116 in | |||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Solder | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Flush Mount Top Opening Unthreaded | Through Hole Right Angle | 3.25 mm | 0.128 " | |||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Wire Wrap | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Side Mount Opening Unthreaded | Through Hole | 3.25 mm | 0.128 in | |||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Solder | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Flush Mount Side Opening Unthreaded | Board Edge Straddle Mount | Card Extender | 3.25 mm | 0.128 " | ||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Solder | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | 4-40 Flush Mount Threaded Insert Top Opening | Through Hole Right Angle | |||||
EDAC Inc. | Dual | Non Specified - Dual Edge | 2 | Polyphenylene Sulfide (PPS) | 10 Áin | 0.25 Ám | 28 | Wire Wrap | Copper Alloy | 125 °C | -40 °C | 2 | Cantilever | Female | 56 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 0.156 in | 3.96 mm | Black | Gold | Flush Mount Top Opening Unthreaded | Through Hole | 3.25 mm | 0.128 " |
