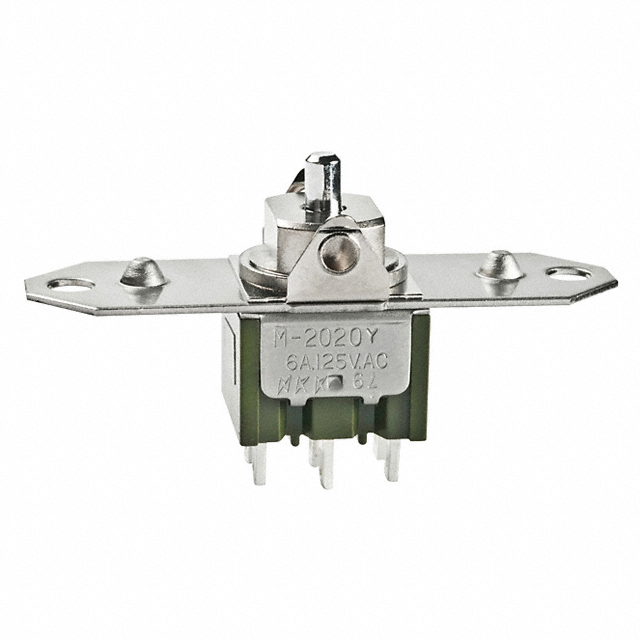

SWITCH ROCKER SP3T 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SP3T 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2024TYW01

Actuator Marking	Varies by Cap
Actuator Type	Actuator Arm, Cap Required
Approval Agency	CSA, UL
Circuit	SP3T
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Jumper needed to achieve triple throw
Mounting Type	Panel Mount, Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	16 mm
Switch Function	On-On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Approval Agency	Actuator Type	Mounting Type	Voltage Rating - DC	Termination Style	Electrical Life	Current Rating (Amps)	Actuator Marking	Switch Function	Features	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Circuit
NKK Switches M2024TYW01-HB	28.5 mm	16 mm	125 V	CSA UL	Paddle	Flange Panel Mount	30 V	Solder Lug	25000 Steps	3 A 6 A	No Marking	On-On-On	Jumper needed to achieve triple throw	White	-30 ░C	85 °C	SP3T
NKK Switches M2024TYW01-JA	28.5 mm	16 mm	125 V	CSA UL	Concave (Standard V)	Flange Panel Mount	30 V	Solder Lug	25000 Steps	3 A 6 A	No Marking	On-On-On	Jumper needed to achieve triple throw	Black	-30 ░C	85 °C	SP3T
NKK Switches M2024TYW01	28.5 mm	16 mm	125 V	CSA UL	Actuator Arm Cap Required	Flange Panel Mount	30 V	Solder Lug	25000 Steps	3 A 6 A	Varies by Cap	On-On-On	Jumper needed to achieve triple throw		-30 ░C	85 °C	SP3T
