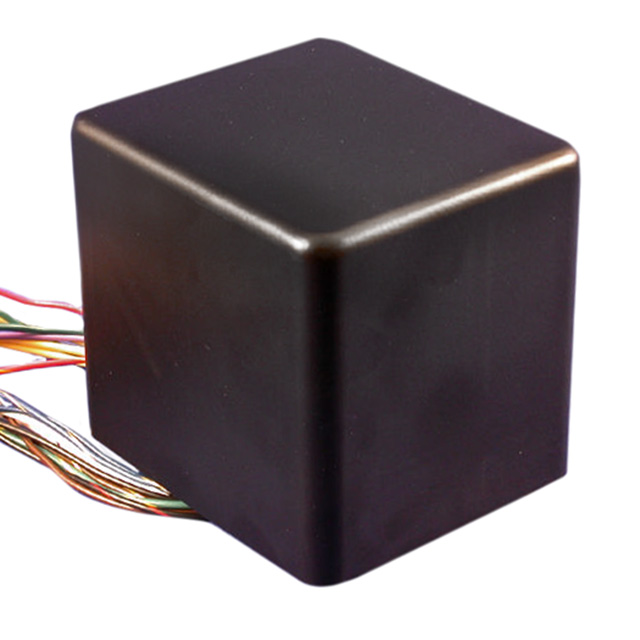

370EXP
ActiveHammond Manufacturing
PWR XFMR LAMINATED 119VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
Documents300P
370EXP
ActiveHammond Manufacturing
PWR XFMR LAMINATED 119VA CHAS MT
Deep-Dive with AI
Documents300P
Technical Specifications
Parameters and characteristics for this part
| Specification | 370EXP |
|---|---|
| Center Tap | True |
| Current - Output (Max) | 4 A, 3 A, 144 mA |
| Height - Seated (Max) [Max] [z] | 96.77 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 119 VA |
| Primary Winding(s) | Multiple Taps, Dual |
| Secondary Winding(s) | Triple |
| Size / Dimension [x] | 3.75 in |
| Size / Dimension [y] | 79.5 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 2000 Vrms |
| Voltage - Primary | 110 V, 200 V, 120 V, 100 V, 220 V, 240 V |
| Voltage - Secondary (Full Load) | 5 V, 6.3 V, 550 V |
| Weight | 2.3 kg |
| Weight | 5 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 317.35 | |
Description
General part information
370EX Series
PWR XFMR LAMINATED 119VA CHAS MT
