787531-1

Obsolete

TE Connectivity AMP Connectors

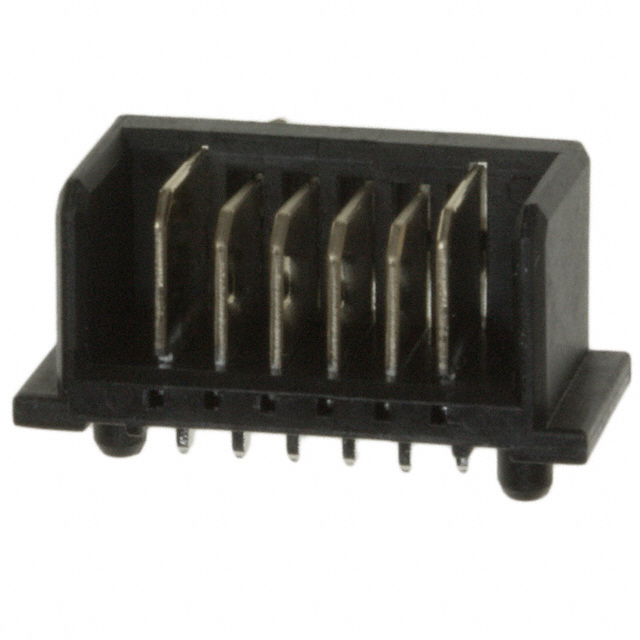

CONN HDR 6POS 2.00MM PCB SLDR

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HDR 6POS 2.00MM PCB SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	787531-1

Color	Black
Connector Type	Male Blades, Header
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Board Guide
Material - Insulation	Syndiotactic Polystyrene (SPS)
Mounting Type	Through Hole
Number of Positions	6
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

CONN HDR 6POS 2.00MM PCB SLDR

Part	Material - Insulation	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Contact Finish	Color	Features	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Contact Material	Fastening Type	Number of Positions	Current Rating (Amps)	Number of Rows	Connector Type
TE Connectivity AMP Connectors 787531-1	Syndiotactic Polystyrene (SPS)	Solder	105 ░C	-55 °C	Through Hole	Gold	Black	Board Guide	3 Áin	0.076 Ám	0.079 in	2 mm	Brass	Push-Pull	6	7 A	1	Header, Male Blades

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

6 Position Header, Male Blades Connector Solder 0.079" (2.00mm) Through Hole
