ActiveMill-Max Manufacturing Corp.

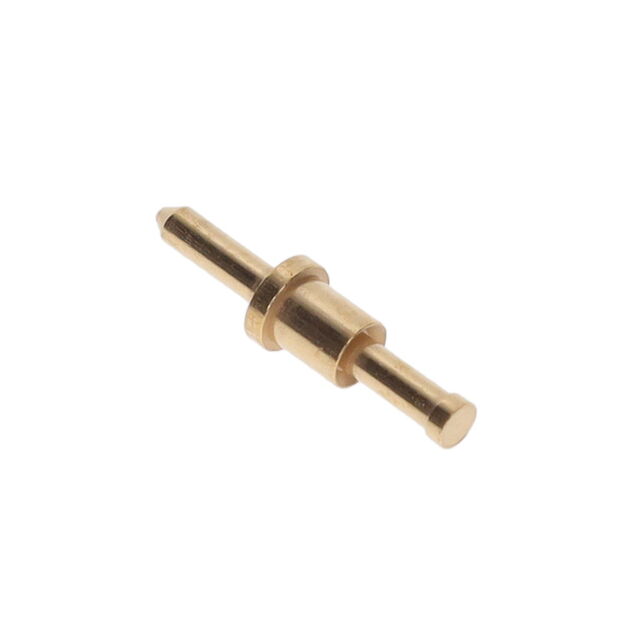

CIRCUIT PIN PRNTD .050"D .082"L
Deep-Dive with AI
Search across all available documentation for this part.
3156-2-00-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CIRCUIT PIN PRNTD .050"D .082"L
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3156-2-00-34-00-00-08-0 |
|---|---|
| Board Thickness | 0.062 in |
| Board Thickness | 1.57 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Diameter - Turret Head [diameter] | 1.27 mm |
| Diameter - Turret Head [diameter] | 0.05 in |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Board [x] | 3.81 mm |
| Length - Above Board [x] | 0.15 in |
| Length - Below Flange [x] | 0.207 in |
| Length - Below Flange [x] | 5.26 mm |
| Length - Overall [x] | 0.379 " |
| Length - Overall [x] | 9.63 mm |
| Mounting Hole Diameter [diameter] | 1.93 mm |
| Mounting Hole Diameter [diameter] | 0.076 in |
| Mounting Type | Through Hole |
| Number of Turrets | Single |
| Terminal Type | Double End, Pin |
| Termination | Swage |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.80 | |
| 10 | $ 1.53 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.37 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.22 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 1.11 | |||
| 3000 | $ 1.02 | |||
Description
General part information
3156-2 Series
Terminal Turret Connector Double End, Pin 0.150" (3.81mm) Gold
