1-1437538-3

Active

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 28POS TINLEAD

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN IC DIP SOCKET 28POS TINLEAD

Technical Specifications

Parameters and characteristics for this part

Specification	1-1437538-3

Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material - Mating	Copper Alloy
Contact Material - Post [custom]	Copper Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	28
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

Part	Contact Material - Mating	Mounting Type	Number of Positions or Pins (Grid)	Pitch - Post	Pitch - Post	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Housing Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Termination Post Length	Termination Post Length	Type	Type	Type	Features	Termination	Contact Resistance	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish - Mating	Contact Finish - Post	Contact Material - Post [custom]
TE Connectivity Raychem Cable Protection 1-1437538-1	Copper Alloy	Surface Mount	28	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	Polyester	3 A	105 ░C	-55 °C	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	Open Frame	Solder	10 mOhm
TE Connectivity Raychem Cable Protection 3-1437538-2	Copper Alloy	Through Hole	40	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	Polyester	3 A	105 ░C	-55 °C	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	Open Frame	Solder	10 mOhm	20	2	Tin-Lead
TE Connectivity Raychem Cable Protection 1-1437538-3	Copper Alloy	Through Hole	28	2.54 mm	0.1 in	0.1 in	2.54 mm	UL94 V-0	Polyester	3 A	105 ░C	-55 °C	3.18 mm	0.125 in	DIP	0.6 in	15.24 mm	Open Frame	Solder	10 mOhm			Tin-Lead	Tin-Lead	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

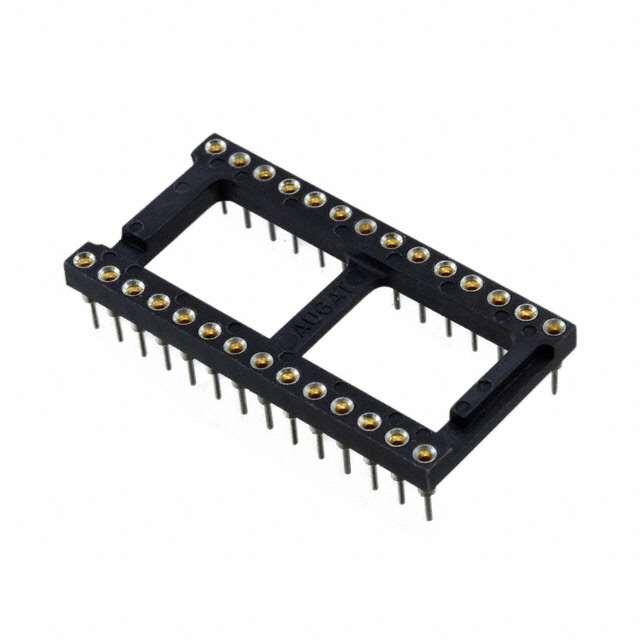

28 (2 x 14) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Tin-Lead Through Hole
