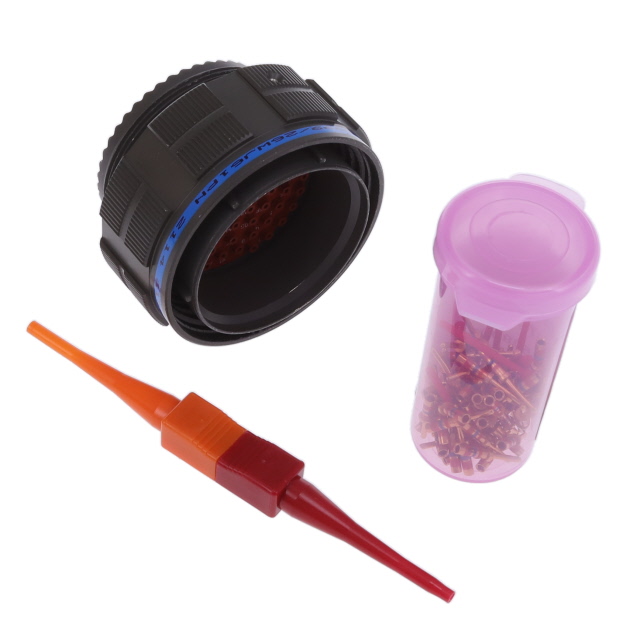

D38999/26WJ61PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 61POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/26WJ61PN

Active

Amphenol Aerospace Operations

CONN PLUG MALE 61POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/26WJ61PN

Applications	Aviation, Aerospace, Marine, Military
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Features	Coupling Nut
Grade	Military
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	61
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	61
Shell Size - Insert [Min]	25
Shell Size, MIL	J
Shielding	Shielded
Termination	Crimp

D38999/26WJ Series

Part	Connector Type	Shell Size, MIL	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Shell Material	Housing Color	Grade	Ingress Protection	Number of Positions	Features	Orientation	Qualification	Shell Finish	Contact Shape	Contact Type	Shielding	Mounting Type	Note	Type	Contact Finish - Mating	Contact Material	Applications	Primary Material	Termination	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Size	Shell Size - Insert
Amphenol Aerospace Operations D38999/26WJ35JA-LC	Plug Housing	J	-65 ░C	347 °F	22D	Aluminum	Olive Drab	Military	Environment Resistant	128	Coupling Nut Self Locking	A	MIL-DTL-38999 Series III	Cadmium	Circular	Crimp	Shielded	Free Hanging (In-Line)	Contacts Not Included	For Female Sockets
Amphenol Aerospace Operations D38999/26WJ43HA	Male Pins Plug	J	-65 ░C	347 °F		Aluminum		Military	Environment Resistant	43	Coupling Nut Self Locking	A	MIL-DTL-38999 Series III	Olive Drab Cadmium			Shielded	Free Hanging (In-Line)			Gold	Copper Alloy	Aviation Marine Military	Metal	Crimp	25	43	Olive Drab	2.54 çm	100 çin
Amphenol Aerospace Operations D38999/26WJ61PN	Male Pins Plug	J	-65 ░C	347 °F		Aluminum		Military	Environment Resistant	61	Coupling Nut	N	MIL-DTL-38999 Series III	Olive Drab Cadmium			Shielded	Free Hanging (In-Line)			Gold	Copper Alloy	Aerospace Aviation Marine Military	Metal	Crimp	25	61	Olive Drab	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26WJ11BD	Plug Housing	J	-65 ░C	347 °F		Aluminum	Olive Drab	Military	Environment Resistant	11	Coupling Nut Self Locking	D	MIL-DTL-38999 Series III	Cadmium	Circular	Crimp	Shielded	Free Hanging (In-Line)	Contacts Not Included	For Female Sockets											10 20	25-11
Amphenol Aerospace Operations D38999/26WJ37HE-LC	Plug Housing	J	-65 ░C	347 °F		Aluminum	Olive Drab	Military	Environment Resistant	37	Coupling Nut Self Locking	E	MIL-DTL-38999 Series III	Cadmium	Circular	Crimp	Shielded	Free Hanging (In-Line)	Contacts Not Included	For Male Pins						25	37				16
Amphenol Aerospace Operations D38999/26WJ61JN	Female Sockets Plug	J	-65 ░C	347 °F		Aluminum		Military	Environment Resistant	61	Coupling Nut Self Locking	N	MIL-DTL-38999 Series III	Olive Drab Cadmium			Shielded	Free Hanging (In-Line)			Gold	Copper Alloy	Aviation Marine Military	Metal	Crimp	25	61	Olive Drab	2.54 çm	100 çin
Amphenol Aerospace Operations D38999/26WJ8BE	Plug Housing	J	-65 ░C	347 °F	8 Twinax	Aluminum	Olive Drab	Military	Environment Resistant	8	Coupling Nut Self Locking	E	MIL-DTL-38999 Series III	Cadmium	Circular	Crimp	Shielded	Free Hanging (In-Line)	Contacts Not Included	For Female Sockets												25-8
Amphenol Aerospace Operations D38999/26WJ11PB-LC	Plug Housing	J	-65 ░C	347 °F		Aluminum	Olive Drab	Military	Environment Resistant	11	Coupling Nut Self Locking	B	MIL-DTL-38999 Series III	Cadmium	Circular	Crimp	Shielded	Free Hanging (In-Line)	Contacts Not Included	For Male Pins											10 20	25-11
Amphenol Aerospace Operations D38999/26WJ37PA	Male Pins Plug	J	-65 ░C	347 °F		Aluminum		Military	Environment Resistant	37	Coupling Nut Self Locking	A	MIL-DTL-38999 Series III	Olive Drab Cadmium			Shielded	Free Hanging (In-Line)			Gold	Copper Alloy	Aviation Marine Military	Metal	Crimp	25	37	Olive Drab	1.27 µm	50 µin
Amphenol Aerospace Operations D38999/26WJ11BN	Plug Housing	J	-65 ░C	347 °F		Aluminum	Olive Drab	Military	Environment Resistant	11	Coupling Nut Self Locking	N	MIL-DTL-38999 Series III	Cadmium	Circular	Crimp	Shielded	Free Hanging (In-Line)	Contacts Not Included	For Female Sockets											10 20	25-11

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 248.04
		1	$ 286.51
		10	$ 276.01
		10	$ 236.51
		25	$ 268.61

Description

General part information

D38999/26WJ Series

61 Position Circular Connector Plug, Male Pins Crimp
