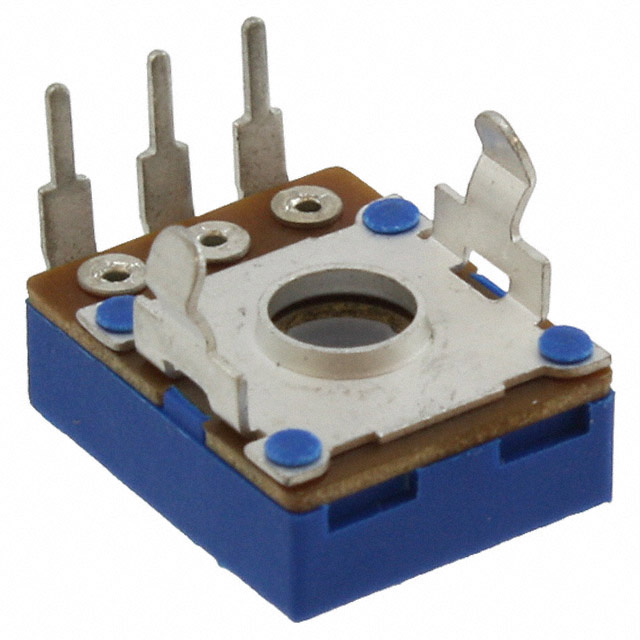

1624191-5

Obsolete

TE Connectivity Passive Product

POT 100 OHM 1/5W CARBON LINEAR

Search across all available documentation for this part.

Obsolete

TE Connectivity Passive Product

POT 100 OHM 1/5W CARBON LINEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

POT 470 OHM 1/5W CARBON LINEAR

Part	Number of Turns	Size - Body [y]	Size - Body [x]	Size - Body [x]	Size - Body [y]	Taper	Termination Style	Temperature Coefficient	Number of Gangs	Resistive Material	Mounting Type	Resistance (Ohms)	Tolerance	Adjustment Type	Rotation	Power (Watts)	Power (Watts)	Resistance (Ohms)	Power (Watts)
TE Connectivity Passive Product 1624191-2	1	0.533 "	15.8 mm	0.622 "	13.55 mm	Linear	Board Locks, PC Pins	500 ppm/°C	1	Carbon	Through Hole	470 Ohms	20 %	Top Adjustment	300 ░	0.2 W	1/5
TE Connectivity Passive Product 1-1624191-5	1	0.533 "	15.8 mm	0.622 "	13.55 mm	Logarithmic	Board Locks, PC Pins	500 ppm/°C	1	Carbon	Through Hole		20 %	Top Adjustment	300 ░	0.1 W		10k	0.1 W
TE Connectivity Passive Product 1624191-5	1	0.533 "	15.8 mm	0.622 "	13.55 mm	Linear	Board Locks, PC Pins	500 ppm/°C	1	Carbon	Through Hole	100 Ohms	20 %	Top Adjustment	300 ░	0.2 W	1/5
TE Connectivity Passive Product 1624191-7	1	0.533 "	15.8 mm	0.622 "	13.55 mm	Linear	Board Locks, PC Pins	500 ppm/°C	1	Carbon	Through Hole		20 %	Top Adjustment	300 ░	0.2 W	1/5	47k

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

100 Ohm 1 Gang Linear Through Hole Potentiometer 1.0 Turns Carbon 0.2W, 1/5W PC Pins, Board Locks
