M2018B2B1W03

Obsolete

NKK Switches

30V 125V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

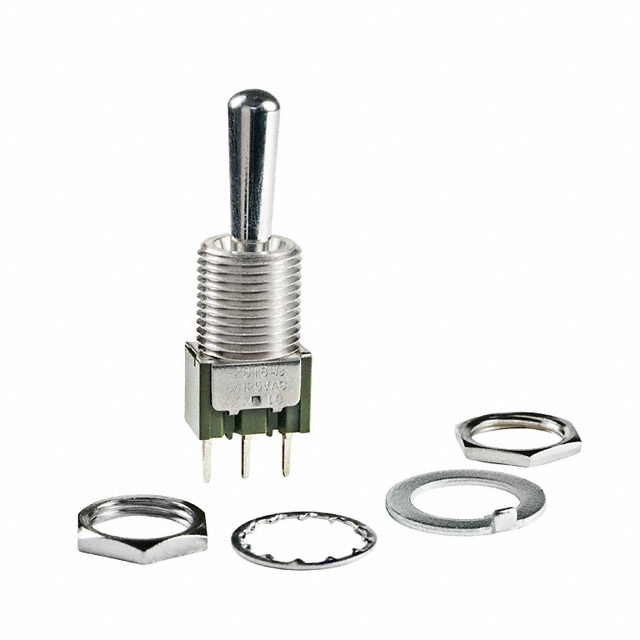

M2018B2B1W03

Obsolete

NKK Switches

30V 125V SPDT STRAIGHT TOGGLE SWITCHES ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M2018B2B1W03

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	SPDT
Current Rating (Amps)	3 A, 6 A
Electrical Life	25000 Steps
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	Mom-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

M2018B2 Series

Part	Bushing Thread	Bushing Thread	Circuit	Current Rating (Amps)	Switch Function	Illumination	Termination Style	Actuator Type	Actuator Material	Voltage Rating - DC	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Electrical Life	Ingress Protection
NKK Switches M2018B2B1W01	M12	1 x 1	SPDT	3 A 6 A	Mom-Off-Mom	Non-Illuminated	Solder Lug	Standard Round	Brass Chrome Plated	30 V	17.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	12.5 mm	25000 Steps
NKK Switches M2018B2B3G01	M12	1 x 1	SPDT	0.4 VA	Mom-Off-Mom	Non-Illuminated	Solder Lug	Standard Round	Brass Chrome Plated	28 V	17.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	28 V	12.5 mm	50000 Cycles	IP67 - Dust Tight Waterproof
NKK Switches M2018B2B1G06	M12	1 x 1	SPDT	0.4 VA	Mom-Off-Mom	Non-Illuminated	Wire Wrap	Standard Round	Brass Chrome Plated	28 V	17.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	28 V	12.5 mm	50000 Cycles
NKK Switches M2018B2B3W01-VB	M12	1 x 1	SPDT	3 A 6 A	Mom-Off-Mom	Non-Illuminated	Solder Lug	Standard Round with Cap	Brass Chrome Plated	30 V	18.5 mm	-30 ░C	85 °C	White Cap	125 V	12.5 mm	25000 Steps	IP67 - Dust Tight Waterproof
NKK Switches M2018B2B1W03	M12	1 x 1	SPDT	3 A 6 A	Mom-Off-Mom	Non-Illuminated	PC Pin	Standard Round	Brass Chrome Plated	30 V	17.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	12.5 mm	25000 Steps
NKK Switches M2018B2B1W01-VA	M12	1 x 1	SPDT	3 A 6 A	Mom-Off-Mom	Non-Illuminated	Solder Lug	Standard Round with Cap	Brass Chrome Plated	30 V	17.5 mm	-30 ░C	85 °C	Black Cap	125 V	12.5 mm	25000 Steps
NKK Switches M2018B2B1W01-VB-AT401A	M12	1 x 1	SPDT	3 A 6 A	Mom-Off-Mom	Non-Illuminated	Solder Lug	Standard Round with Cap	Brass Chrome Plated	30 V	17.5 mm	-30 ░C	85 °C		125 V	12.5 mm	25000 Steps
NKK Switches M2018B2B3W01	M12	1 x 1	SPDT	3 A 6 A	Mom-Off-Mom	Non-Illuminated	Solder Lug	Standard Round	Brass Chrome Plated	30 V	17.5 mm	-30 ░C	85 °C	Epoxy Sealed Terminals	125 V	12.5 mm	25000 Steps	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.09
		10	$ 6.98
		25	$ 6.58
		50	$ 6.30
		100	$ 6.02
		250	$ 5.68
		500	$ 5.43
		1000	$ 5.19
LCSC	Piece	1	$ 8.15
		200	$ 3.25
		500	$ 3.14

Description

General part information

M2018B2 Series

Toggle Switch SPDT Panel Mount

Documents

Technical documentation and resources
