HEE-010-F
ActiveTE Connectivity AMP Connectors

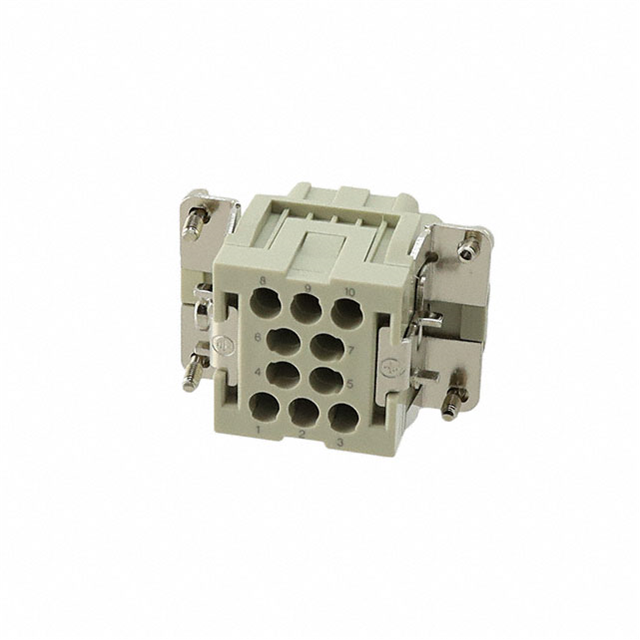

INSERT FML 10POS+1GND HEE-010-F
Deep-Dive with AI
Search across all available documentation for this part.
HEE-010-F
ActiveTE Connectivity AMP Connectors
INSERT FML 10POS+1GND HEE-010-F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEE-010-F | HEE-010 Series |
|---|---|---|
| Connector Type | Insert without Contacts | Insert without Contacts |
| Contact Type | CEF, DEF | CEF, DEF, CEM, DEM |
| Current Rating (Amps) | 16 A | 16 A |
| Gender | Female | Female, Male |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) |
| Material Flammability Rating | EN45545 | EN45545 |
| Number of Positions | 10+Ground | 10+Ground |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H6B | H6B |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 500 V | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.89 | |
| 10 | $ 6.00 | |||
| 30 | $ 5.84 | |||
| 50 | $ 5.68 | |||
| 100 | $ 5.56 | |||
HEE-010 Series
INSERT FML 10POS+1GND HEE-010-F
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Type | Termination Style | Number of Positions | Size | Voltage Rating | Housing Material | Current Rating (Amps) | Gender | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors HEE-010-F | 125 °C | -40 °C | EN45545 | CEF, DEF | Crimp | 10+Ground | H6B | 500 V | Polycarbonate (PC) | 16 A | Female | Insert without Contacts |
TE Connectivity AMP Connectors HEE-010-M | 125 °C | -40 °C | EN45545 | CEM, DEM | Crimp | 10+Ground | H6B | 500 V | Polycarbonate (PC) | 16 A | Male | Insert without Contacts |
Description
General part information
HEE-010 Series
Female Insert without Contacts 10+Ground Position Crimp
Documents
Technical documentation and resources
No documents available
