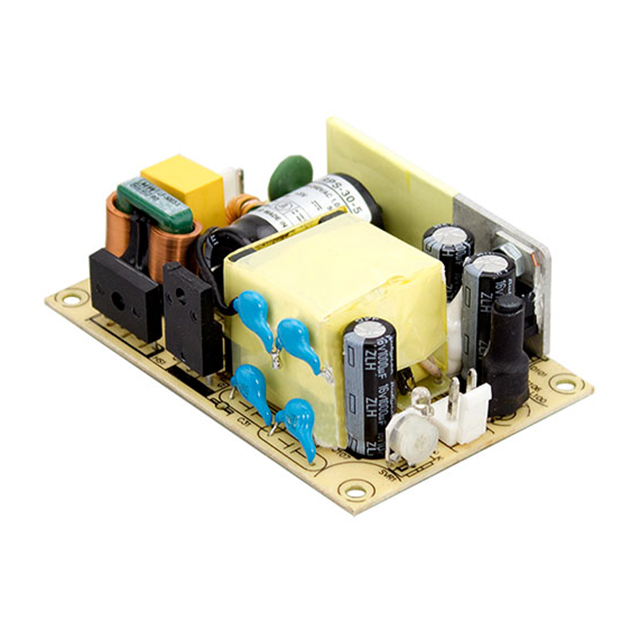

Specification	RPS-30-12

Applications	Medical
Approval Agency	cURus, CB, TUV, CE
Current - Output 1	2.5 A
Efficiency	88 %
Features	Universal Input, Adjustable Output
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-30 °C
Power (Watts)	30 W
Size / Dimension Height	0.95 in
Size / Dimension Length	3 in
Size / Dimension Width	2 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	80 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	12 V

RPS-30 Series

Part	Current - Output 1	Type	Features	Applications	Approval Agency	Voltage - Output 1	Mounting Type	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	Voltage - Isolation	Number of Outputs	Efficiency	Minimum Load Required
MEAN WELL USA Inc. RPS-30-24	1.25 A	Open Frame	Adjustable Output Universal Input	Medical	CB CE cURus TUV	24 V	Chassis Mount	2 in	3 in	0.95 in	70 °C	-30 °C	80 V	264 V	30 W	4000 Vpk	1	89.5 %	No
MEAN WELL USA Inc. RPS-30-7.5	4 A	Open Frame	Adjustable Output Universal Input	Medical	CB CE cURus TUV	7.5 V	Chassis Mount	2 in	3 in	0.95 in	70 °C	-30 °C	80 V	264 V	30 W	4000 Vpk	1	84 %	No
MEAN WELL USA Inc. RPS-30-5	6 A	Open Frame	Adjustable Output Universal Input	Medical	CB CE cURus TUV	5 V	Chassis Mount	2 in	3 in	0.95 in	70 °C	-30 °C	80 V	264 V	30 W	4000 Vpk	1	82 %	No
MEAN WELL USA Inc. RPS-30-15	2 A	Open Frame	Adjustable Output Universal Input	Medical	CB CE cURus TUV	15 V	Chassis Mount	2 in	3 in	0.95 in	70 °C	-30 °C	80 V	264 V	30 W	4000 Vpk	1	89 %	No
MEAN WELL USA Inc. RPS-30-48	625 mA	Open Frame	Adjustable Output Universal Input	Medical	CB CE cURus TUV	48 V	Chassis Mount	2 in	3 in	0.95 in	70 °C	-30 °C	80 V	264 V	30 W	4000 Vpk	1	92 %	No
MEAN WELL USA Inc. RPS-30-12	2.5 A	Open Frame	Adjustable Output Universal Input	Medical	CB CE cURus TUV	12 V	Chassis Mount	2 in	3 in	0.95 in	70 °C	-30 °C	80 V	264 V	30 W	4000 Vpk	1	88 %	No
