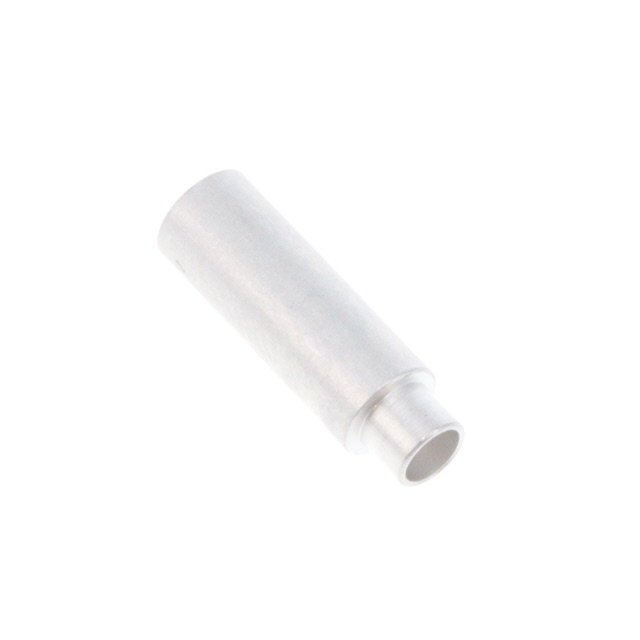

3036-B-256-AL-7
ActiveRAF Electronic Hardware
3/16 RD X 1/2 LENGTH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3036-B-256-AL-7
ActiveRAF Electronic Hardware
3/16 RD X 1/2 LENGTH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3036-B-256-AL-7 |
|---|---|
| Between Board Height | 0.5 in |
| Between Board Height | 12.7 mm |
| Between Board Height | 0.5 in |
| Color | Clear |
| Diameter - Outside [diameter] | 4.76 mm |
| Diameter - Outside [diameter] | 0.188 " |
| Gender | Swage, Female |
| Length - Overall [x] | 15.37 mm |
| Length - Overall [x] | 0.605 " |
| Material | Aluminum |
| Plating | Iridite |
| Screw, Thread Size | #2-56 |
| Threaded/Unthreaded | Threaded |
| Type | Round Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.03 | |
| 5 | $ 1.93 | |||
| 10 | $ 1.88 | |||
| 25 | $ 1.83 | |||
| 50 | $ 1.79 | |||
Description
General part information
3036-B Series
Round Standoff Threaded #2-56 Aluminum 0.500" (12.70mm) 1/2" Clear
Documents
Technical documentation and resources
