SSF-LXH103UWC

Active

Lumex Opto/Components Inc.

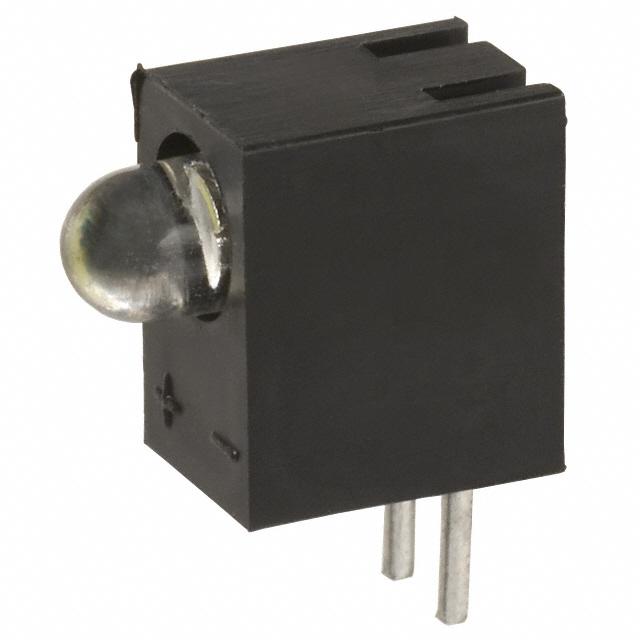

LED CBI 3MM WHITE WATER CLEAR RA

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH103UWC

Active

Lumex Opto/Components Inc.

LED CBI 3MM WHITE WATER CLEAR RA

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.96
		10	$ 1.26
		100	$ 0.90
		500	$ 0.76
		1000	$ 0.72
		2000	$ 0.68
		5000	$ 0.64
		10000	$ 0.62

Description

General part information

SSF-LXH103 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single White Diffused, White 3.6V 20mA Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSF-LXH103UWC	SSF-LXH103 Series

Color	White	Blue, Green, Red, Yellow, White
Configuration	Single	Single
Current	-	12 mA
Current	-	25 mA
Current	-	25 mA
Lens Size	-	3 mm
Lens Size	-	T-1
Lens Size	-	3 mm
Lens Style	-	Round with Domed Top
Lens Type	Diffused, White	Tinted, Diffused, White, Green
Millicandela Rating	1200 mcd	9 - 1200 mcd
Millicandela Rating	-	8 mcd
Millicandela Rating	-	4 mcd
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Viewing Angle	34 °	8 - 80 °
Voltage Rating	3.6 V	1.8 - 5 V
Wavelength - Peak	550 nm	550 - 660 nm
Wavelength - Peak	-	565 - 700 nm

SSF-LXH103 Series

LED CBI 3MM BLU RA PCMNT

Part	Mounting Type	Viewing Angle	Millicandela Rating	Color	Lens Style	Configuration	Lens Type	Lens Size	Lens Size	Wavelength - Peak	Voltage Rating	Lens Size [diameter]	Current
Lumex Opto/Components Inc. SSF-LXH103USBD	Through Hole, Right Angle	60 °	80 mcd	Blue	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1
Lumex Opto/Components Inc. SSF-LXH103GD	Through Hole, Right Angle	60 °	30 mcd	Green	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	565 nm	2.1 V
Lumex Opto/Components Inc. SSF-LXH103SRD	Through Hole, Right Angle	60 °	80 mcd	Red	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	660 nm	1.8 V
Lumex Opto/Components Inc. SSF-LXH103SYD	Through Hole, Right Angle	60 °	100 mcd	Yellow	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	590 nm	2 V
Lumex Opto/Components Inc. SSF-LXH103LGD	Through Hole, Right Angle	80 °	15 mcd	Green	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	565 nm	2.1 V
Lumex Opto/Components Inc. SSF-LXH103UWC	Through Hole, Right Angle	34 °	1200 mcd	White		Single	Diffused, White			550 nm	3.6 V
Lumex Opto/Components Inc. SSF-LXH103ID	Through Hole, Right Angle	60 °	30 mcd	Red	Round with Domed Top	Single	Diffused, Tinted			635 nm	2.1 V	3 mm
Lumex Opto/Components Inc. SSF-LXH103UWW	Through Hole, Right Angle	30 °	500 mcd	White		Single	Diffused, White			550 nm	3.6 V
Lumex Opto/Components Inc. SSF-LXH103GD-5V	Through Hole, Right Angle	8 °	80 mcd	Green	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	565 nm	5 V		12 mA
Lumex Opto/Components Inc. SSF-LXH103ID-5V	Through Hole, Right Angle	80 °	9 mcd	Red	Round with Domed Top	Single	Diffused, Tinted	3 mm	T-1	635 nm	5 V		12 mA
