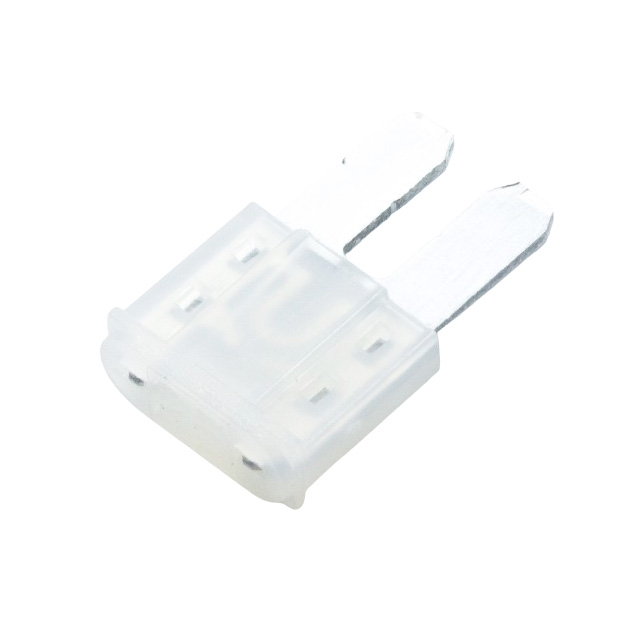

ANT-25A

Active

OptiFuse

FUSE AUTO 25A 32VDC BLADE MICRO

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 25A 32VDC BLADE MICRO

Technical Specifications

Parameters and characteristics for this part

Specification	ANT-25A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Clear
Current Rating (Amps)	25 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Micro
Response Time	Fast Blow
Size / Dimension [x]	0.358 in
Size / Dimension [x]	9.1 mm
Size / Dimension [y]	0.15 "
Size / Dimension [y]	3.8 mm
Size / Dimension [z]	7.9 mm
Size / Dimension [z]	0.311 "
Voltage Rating - DC	32 V

FUSE AUTO 25A 32VDC BLADE MICRO

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Response Time	Approval Agency	Package / Case	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Color	Fuse Type	Mounting Type
OptiFuse ANT-25A	0.15 "	0.358 in	7.9 mm	0.311 "	3.8 mm	9.1 mm	25 A	Fast Blow	ISO, SAE	Blade, Micro	32 V	1 kA	Clear	Automotive	Requires Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 A AC 32 V DC Fuse Automotive Requires Holder Blade, Micro
