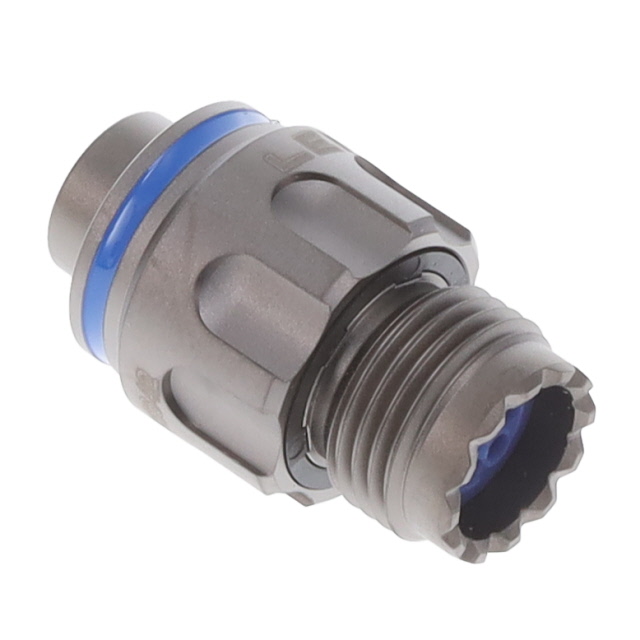

FGN.1M.308.XLCM

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Search across all available documentation for this part.

Active

LEMO

CONN PLUG MALE 8POS GOLD CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FGN.1M.308.XLCM	FGN.1M Series

Applications	Military, Aerospace, Automotive, Aviation	Military, Aerospace, Automotive, Aviation
Cable Opening	-	9.7 mm
Cable Opening	-	0.382 in
Color	Gray	Gray
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	5 A	5 - 7 A
Features	Coupling Nut	Coupling Nut
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	7 - 8
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Shell Finish	Nickel	Nickel
Shell Material	Aluminum Alloy	Aluminum Alloy
Shell Size - Insert	308	307 - 308
Shielding	Shielded	Shielded
Termination	Crimp	Crimp

CONN PLUG MALE 8POS GOLD CRIMP

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Finish	Shell Size - Insert	Applications	Contact Material	Ingress Protection	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Contact Finish - Mating	Features	Current Rating (Amps)	Number of Positions	Shielding	Orientation	Color	Primary Material	Shell Material	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material
LEMO FGN.1M.308.XLCT	1 µm	39.4 µin	Nickel	308	Aerospace, Automotive, Aviation, Military	Brass	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	9.7 mm	0.382 in	Gold	Coupling Nut	5 A	8	Shielded	N	Gray	Metal	Aluminum Alloy	Male Pins, Plug	Crimp	-55 °C	200 °C	Polyetheretherketone (PEEK)
LEMO FGN.1M.307.XLCT	1 µm	39.4 µin	Nickel	307	Aerospace, Automotive, Aviation, Military	Brass	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)	9.7 mm	0.382 in	Gold	Coupling Nut	7 A	7	Shielded	N	Gray	Metal	Aluminum Alloy	Male Pins, Plug	Crimp	-55 °C	200 °C	Polyetheretherketone (PEEK)
LEMO FGN.1M.308.XLCM	1 µm	39.4 µin	Nickel	308	Aerospace, Automotive, Aviation, Military	Brass	IP68 - Dust Tight, Waterproof	Free Hanging (In-Line)			Gold	Coupling Nut	5 A	8	Shielded	N	Gray	Metal	Aluminum Alloy	Male Pins, Plug	Crimp	-55 °C	200 °C	Polyetheretherketone (PEEK)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.52

General part information

8 Position Circular Connector Plug, Male Pins Crimp
