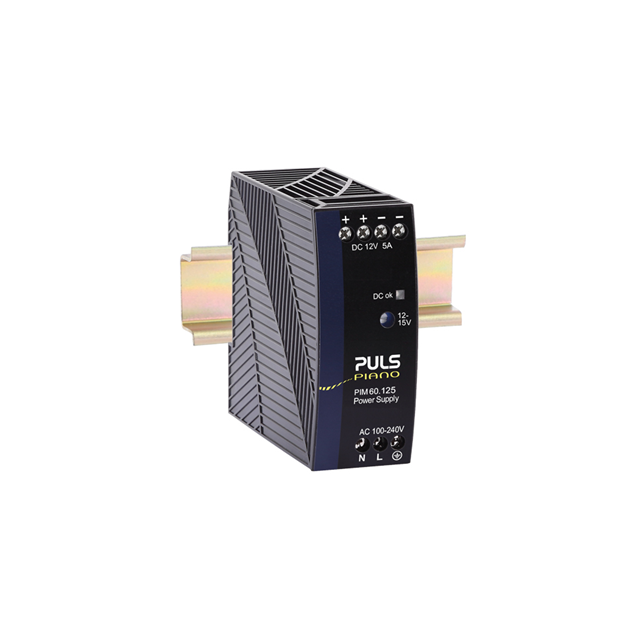

PIM60.125

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 12V 60W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 12V 60W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PIM60.125	PIM60 Series

AC Voltage - Input [Max]	264 VAC	264 VAC
AC Voltage - Input [Min]	90 VAC	90 VAC
Applications	ITE (Commercial), Laboratory	ITE (Commercial), Laboratory
Approval Agency	CE, CB, cULus	CE, CB, cULus, EAC
Current - Output (Max) [Max]	5 A	5 A
Efficiency	90.7 %	90.7 %
Features	PFC, Adjustable Output, Universal Input	PFC, Adjustable Output, Universal Input
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Size / Dimension [x]	3.58 in	3.58 in
Size / Dimension [x]	91 mm	91 mm
Size / Dimension [y]	1.42 in	1.42 in
Size / Dimension [y]	36 mm	36 mm
Size / Dimension [z]	90 mm	90 mm
Size / Dimension [z]	3.54 "	3.54 "
Standard Number	62368-1, 61010-1	62368-1, 61010-1
Voltage - Output 1	12 V	12 V

AC/DC DIN RAIL SUPPLY 12V 60W

Part	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Voltage - Output 1	Number of Outputs	Input Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Standard Number	Approval Agency	Current - Output (Max) [Max]	Applications
PULS, LP PIM60.125	90 VAC	264 VAC	-10 °C	70 °C	Adjustable Output, PFC, Universal Input	12 V	1	AC	3.58 in	90 mm	1.42 in	36 mm	3.54 "	91 mm	90.7 %	61010-1, 62368-1	CB, CE, cULus	5 A	ITE (Commercial), Laboratory
PULS, LP PIM60.121	90 VAC	264 VAC	-10 °C	70 °C	Adjustable Output, PFC, Universal Input	12 V	1	AC	3.58 in	90 mm	1.42 in	36 mm	3.54 "	91 mm	90.7 %	61010-1, 62368-1	CB, CE, cULus, EAC	5 A	ITE (Commercial), Laboratory

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 103.50

General part information

AC/DC DIN RAIL SUPPLY 12V 60W

Technical documentation and resources

No documents available
