CDBQR0130R-HF

Active

Comchip Technology

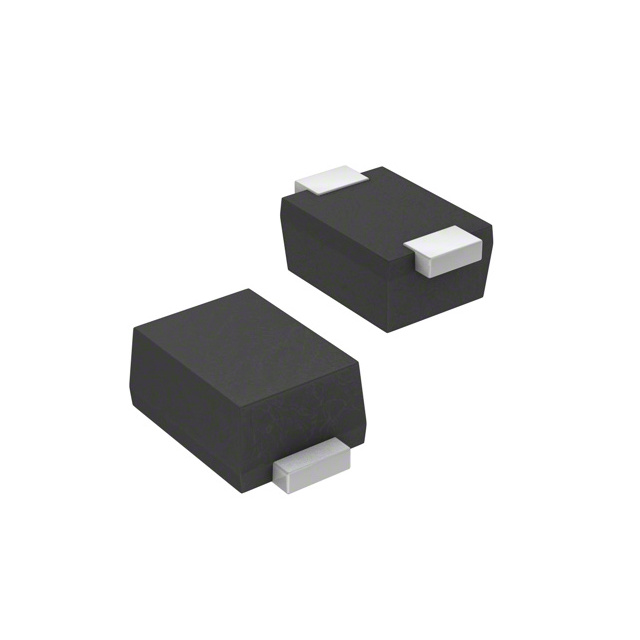

DIODE SCHOTTKY 30V 100MA 0402

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SCHOTTKY 30V 100MA 0402

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDBQR0130R-HF	CDBQR0130 Series

Current - Average Rectified (Io)	100 mA	100 mA
Current - Reverse Leakage @ Vr	500 nA	10 - 500 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction	125 °C	125 °C
Package / Case	0402 (1006 Metric)	0402 (1006 Metric)
Speed	Any Speed	Any Speed
Speed	200 mA	200 mA
Supplier Device Package	0402	0402
Supplier Device Package	SOD-923F	SOD-923F
Technology	Schottky	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	30 V	30 V
Voltage - Forward (Vf) (Max) @ If	450 mV	450 mV
Voltage - Forward (Vf) (Max) @ If	-	350 mV

DIODE SCHOTTKY 30V 100MA 0402

Part	Supplier Device Package	Supplier Device Package	Operating Temperature - Junction	Technology	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Current - Average Rectified (Io)	Speed	Speed	Voltage - Forward (Vf) (Max) @ If
Comchip Technology CDBQR0130L-HF	0402	SOD-923F	125 °C	Schottky	0402 (1006 Metric)	10 µA	350 mV	30 V	Surface Mount	100 mA	Any Speed	200 mA
Comchip Technology CDBQR0130L	0402	SOD-923F	125 °C	Schottky	0402 (1006 Metric)	10 µA	350 mV	30 V	Surface Mount	100 mA	Any Speed	200 mA
Comchip Technology CDBQR0130R-HF	0402	SOD-923F	125 °C	Schottky	0402 (1006 Metric)	500 nA		30 V	Surface Mount	100 mA	Any Speed	200 mA	450 mV
Comchip Technology CDBQR0130R	0402	SOD-923F	125 °C	Schottky	0402 (1006 Metric)	500 nA		30 V	Surface Mount	100 mA	Any Speed	200 mA	450 mV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 30 V 100mA Surface Mount 0402/SOD-923F
