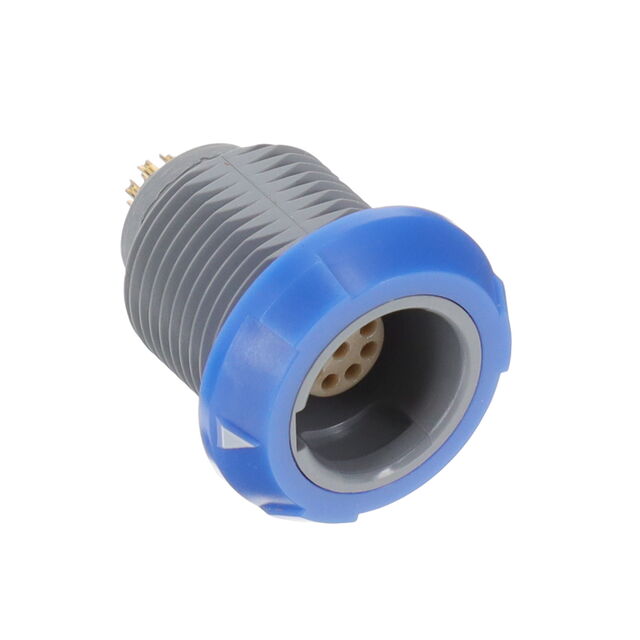

PLG.M0.9SL.LAZ

Active

LEMO

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLG.M0.9SL.LAZ

Active

LEMO

CONN RCPT FMALE 9P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLG.M0.9SL.LAZ	PLG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Gray, Blue	Gray, Green, Black, Yellow, Blue, Red
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	3 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	-	Insert Only, Requires Shell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	9	2 - 9
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polyetherimide (PEI), Polysulfone (PSU)
Shell Size - Insert	M09	M02, M06, M08, M05, M09, M04
Shielding	Unshielded	Unshielded
Termination	-	Crimp

PLG.M0 Series

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Current Rating (Amps)	Shell Size - Insert	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Material	Fastening Type	Number of Positions	Contact Finish - Mating	Orientation	Connector Type	Mounting Feature	Color	Shielding	Applications	Ingress Protection	Termination
LEMO PLG.M0.2SL.LG	10 A	M02	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	2	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.6SL.MV	6 A	M06	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	6	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray, Green	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50	Crimp
LEMO PLG.M0.8TL.LN	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Black	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8SL.LN	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut		Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.5SL.LJ	7 A	M05	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull		Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray, Yellow	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8SL.MG	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50	Crimp
LEMO PLG.M0.5SL.LA	7 A	M05	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull		Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Blue, Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8GL.LA	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	150 °C	Plastic	Polysulfone (PSU)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Blue, Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.7TL.LN	5 A		Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	7	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Black	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8NL.LN	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	150 °C	Plastic	Polysulfone (PSU)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Black	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.23
		10	$ 28.22
		25	$ 27.00
		50	$ 26.13
		100	$ 25.26
		250	$ 23.87

Description

General part information

PLG.M0 Series

9 Position Circular Connector Receptacle, Female Sockets Solder Cup
