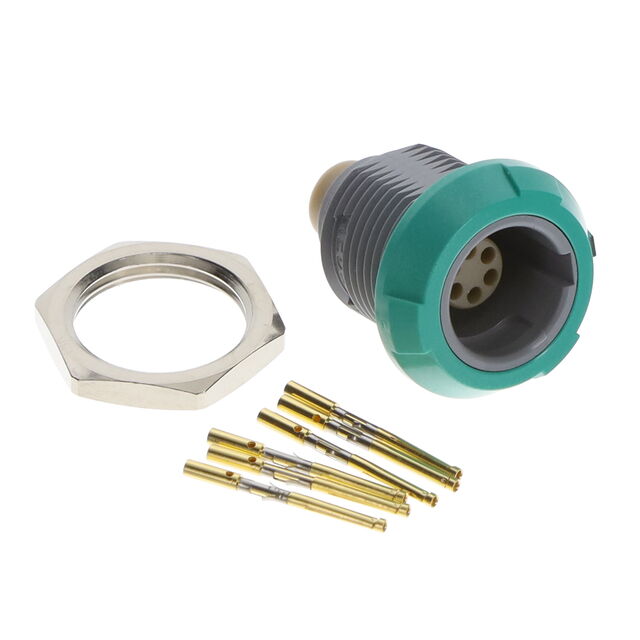

PLG.M0.6SL.MV

Active

LEMO

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLG.M0.6SL.MV

Active

LEMO

CONN RCPT FMALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.25
		10	$ 25.68
		25	$ 23.28
		50	$ 21.65
		100	$ 20.18
		250	$ 18.45
		500	$ 17.28

Description

General part information

PLG.M0 Series

6 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PLG.M0.6SL.MV	PLG.M0 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Color	Green, Gray	Gray, Green, Black, Yellow, Blue, Red
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets, Female Sockets, Insert
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	6 A	3 - 10 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	-	Insert Only, Requires Shell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	6	2 - 9
Operating Temperature [Max]	170 °C	150 - 170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	G	G
Primary Material	Plastic	Plastic
Shell Material	Polyetherimide (PEI)	Polyetherimide (PEI), Polysulfone (PSU)
Shell Size - Insert	M06	M02, M06, M08, M05, M09, M04
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp

PLG.M0 Series

CONN RCPT FMALE 2P GOLD SLDR CUP

Part	Current Rating (Amps)	Shell Size - Insert	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shell Material	Fastening Type	Number of Positions	Contact Finish - Mating	Orientation	Connector Type	Mounting Feature	Color	Shielding	Applications	Ingress Protection	Termination
LEMO PLG.M0.2SL.LG	10 A	M02	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	2	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.6SL.MV	6 A	M06	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	6	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray, Green	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50	Crimp
LEMO PLG.M0.8TL.LN	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Black	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8SL.LN	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut		Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.5SL.LJ	7 A	M05	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull		Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray, Yellow	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8SL.MG	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50	Crimp
LEMO PLG.M0.5SL.LA	7 A	M05	Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull		Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Blue, Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8GL.LA	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	150 °C	Plastic	Polysulfone (PSU)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Blue, Gray	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.7TL.LN	5 A		Polyetheretherketone (PEEK)	-50 °C	170 °C	Plastic	Polyetherimide (PEI)	Detent Lock, Push-Pull	7	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Black	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
LEMO PLG.M0.8NL.LN	5 A	M08	Polyetheretherketone (PEEK)	-50 °C	150 °C	Plastic	Polysulfone (PSU)	Detent Lock, Push-Pull	8	Gold	G	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	Black	Unshielded	Automotive, Industrial, Medical, Testing Equipment & Measurement	IP50
