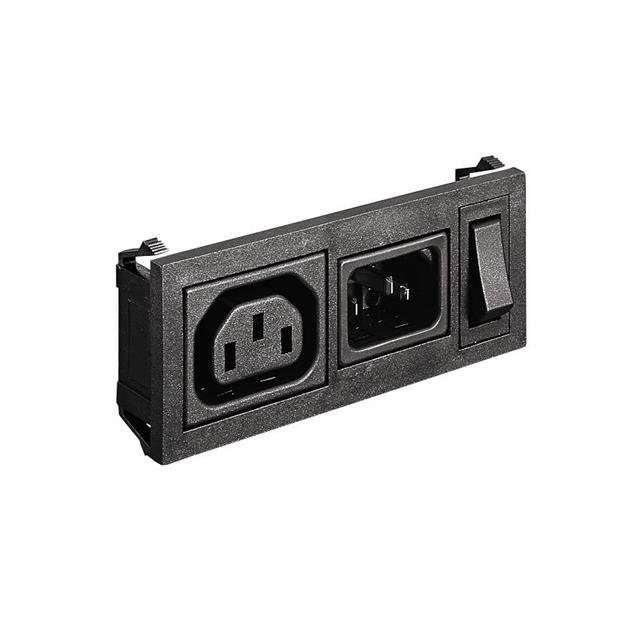

BZH09/Z0000/02

Active

BULGIN LIMITED

PWR ENT IN/OUT IEC320-2-2F PNL

Search across all available documentation for this part.

Active

BULGIN LIMITED

PWR ENT IN/OUT IEC320-2-2F PNL

Technical Specifications

Parameters and characteristics for this part

Specification	BZH09/Z0000/02

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-2-2/F, IEC 320-C14
Connector Type	Receptacle, Female Sockets, Receptacle, Male Blades
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Number of Positions	2
Number of Positions	3
Panel Cutout Dimensions [x]	93.5 mm
Panel Cutout Dimensions [y]	34.4 mm
Panel Thickness [Max]	3 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Min]	0.039 in
Panel Thickness [Min]	1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

PWR ENT IN/OUT IEC320-2-2F PNL

Part	Connector Type	Connector Style	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Approval Agency	Mounting Type	Filter Type	Switch Features	Voltage Rating - Appliance Inlet	Number of Positions	Number of Positions	Material Flammability Rating	Accomodates a Fuse	Current Rating - Appliance Inlet	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]
BULGIN LIMITED BZH09/Z0000/02	Receptacle, Female Sockets, Receptacle, Male Blades	IEC 320-2-2/F, IEC 320-C14	3 mm	0.118 in	0.039 in	1 mm	CSA, ENEC, UL, VDE	Panel Mount, Snap-In	Unfiltered - Commercial	Switch On-Off	250 VAC	2	3	UL94 V-0		10 A	0.25 in	6.3 mm	Quick Connect	34.4 mm	93.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.68
Newark	Each	1	$ 20.49

General part information

Power Entry Connector Receptacle, Female Sockets; Receptacle, Male Blades IEC 320-2-2/F; IEC 320-C14 Panel Mount, Snap-In
