5182-3SG-528

Active

Conxall/Switchcraft

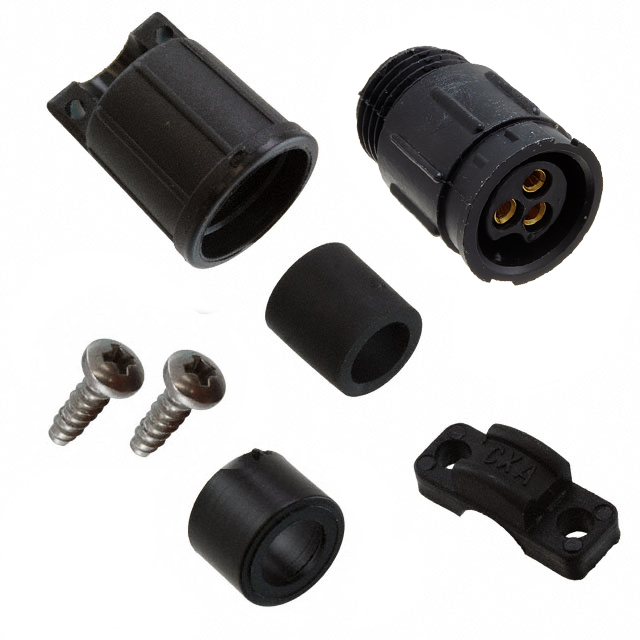

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5182-3SG-528

Active

Conxall/Switchcraft

CONN RCPT FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.73
		10	$ 7.74
		25	$ 7.44
		50	$ 7.14
		100	$ 6.99

Description

General part information

5182-3SG Series

3 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	5182-3SG-528	5182-3SG Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	8.13 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	7.37 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.29 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	7.11 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.28 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Cable Clamp, Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

5182-3SG Series

CONN RCPT FMALE 3P GOLD SLDR CUP

Part	Ingress Protection	Connector Type	Orientation	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Features	Color	Contact Material	Fastening Type	Shielding	Mounting Type	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Backshell Material, Plating	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 5182-3SG-524	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell, Cable Clamp	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)	0.24 in	6.86 mm	6.1 mm	0.27 in	Nylon, Polyamide (PA)	Gold
Conxall/Switchcraft 5182-3SG-318	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)					Nylon, Polyamide (PA)	Gold	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 5182-3SG-521	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell, Cable Clamp	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)	0.21 in	5.84 mm	5.33 mm	0.23 in	Nylon, Polyamide (PA)	Gold
Conxall/Switchcraft 5182-3SG-530	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell, Cable Clamp	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)	0.3 in		7.62 mm	0.32 in	Nylon, Polyamide (PA)	Gold					8.13 mm
Conxall/Switchcraft 5182-3SG-324	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)	0.24 in	6.86 mm	6.1 mm	0.27 in	Nylon, Polyamide (PA)	Gold
Conxall/Switchcraft 5182-3SG-528	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell, Cable Clamp	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)	0.28 in	7.37 mm	7.11 mm	0.29 in	Nylon, Polyamide (PA)	Gold
Conxall/Switchcraft 5182-3SG-515	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell, Cable Clamp	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)					Nylon, Polyamide (PA)	Gold						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5182-3SG-328	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)	0.28 in	7.37 mm	7.11 mm	0.29 in	Nylon, Polyamide (PA)	Gold
Conxall/Switchcraft 5182-3SG-315	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)					Nylon, Polyamide (PA)	Gold						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 5182-3SG-518	Weathertight	Receptacle, Female Sockets	Keyed	600 V	-40 °C	115 °C	Plastic	Backshell, Cable Clamp	Black	Brass	Bayonet Lock	Unshielded	Free Hanging (In-Line)					Nylon, Polyamide (PA)	Gold	4.57 mm	0.18 in	0.2 in	5.08 mm
