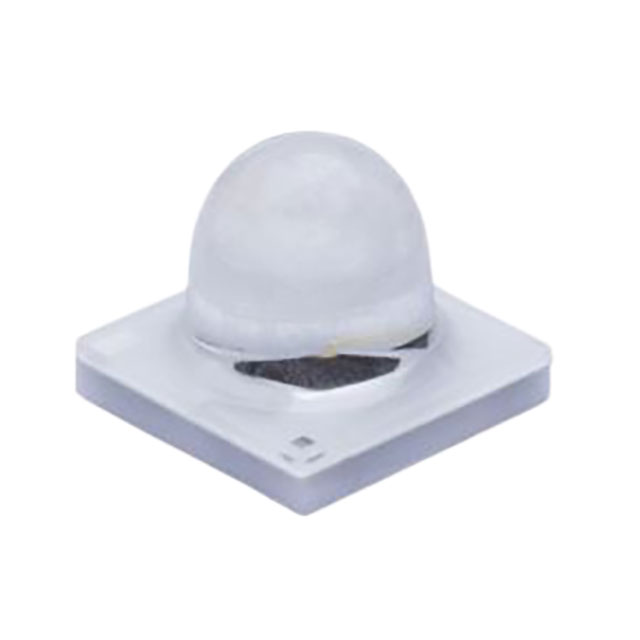

SST-05-IR-B40-K850
ObsoleteLuminus Devices Inc.
IR MOD SST5 850NM TOP VIEW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SST-05-IR-B40-K850
ObsoleteLuminus Devices Inc.
IR MOD SST5 850NM TOP VIEW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SST-05-IR-B40-K850 |
|---|---|
| Current - DC Forward (If) (Max) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature | 115 °C |
| Orientation | Top View |
| Package / Case | 3535 Metric |
| Package / Case | 1414 |
| Radiant Intensity (Ie) Min @ If | 786 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 850 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.08 | |
| 10 | $ 1.49 | |||
| 100 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 1.81 | ||
| 10 | $ 1.29 | |||
| 100 | $ 0.98 | |||
| Tape & Reel (TR) | 500 | $ 0.97 | ||
Description
General part information
SST-05 Series
Infrared (IR) Emitter 850nm 1.6V 1A 786mW/sr @ 1A 40° 1414 (3535 Metric)
