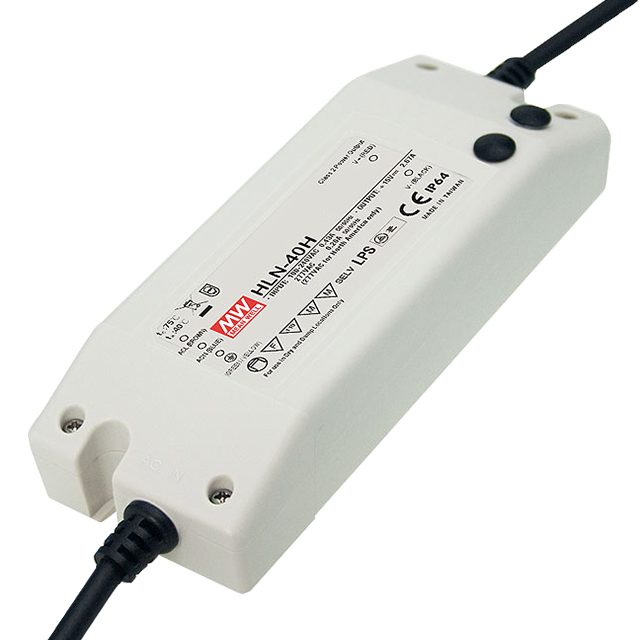

HLN-40H-48B

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 48V 840MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLN-40H-48B

MEAN WELL USA Inc.

LED DRVR CC/CV AC/DC 48V 840MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLN-40H-48B

Approval Agency	CB, PSE, CE, TUV
Current - Output (Max) [Max]	840 mA
Dimming	Analog, PWM
Efficiency	89 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Ratings	IP64
Size / Dimension [x]	161 mm
Size / Dimension [x]	6.34 "
Size / Dimension [y]	61.5 mm
Size / Dimension [y]	2.42 in
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	48 V

HLN-40H Series

Part	Current - Output (Max) [Max]	Voltage - Output	Dimming	Voltage - Isolation	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Type	Voltage - Input (Min) [Min]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Features	Ratings	Termination Style	Voltage - Input (Max) [Max]	Topology	Approval Agency
MEAN WELL USA Inc. HLN-40H-36A	1.12 A	36 V	PWM	3750 V	1	-40 °C	50 °C	88.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter
MEAN WELL USA Inc. HLN-40H-48A	840 mA	48 V	PWM	3750 V	1	-40 °C	50 °C	89 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter	CB CE PSE TUV
MEAN WELL USA Inc. HLN-40H-54B	750 mA	54 V	Analog PWM	3750 V	1	-40 °C	50 °C	89 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter	CB CE PSE TUV
MEAN WELL USA Inc. HLN-40H-12B	3.33 A	12 V	Analog PWM	3750 V	1	-40 °C	50 °C	86.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter
MEAN WELL USA Inc. HLN-40H-20A	2 A	20 V	PWM	3750 V	1	-40 °C	50 °C	87.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter
MEAN WELL USA Inc. HLN-40H-36B	1.12 A	36 V	Analog PWM	3750 V	1	-40 °C	50 °C	88.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter
MEAN WELL USA Inc. HLN-40H-48B	840 mA	48 V	Analog PWM	3750 V	1	-40 °C	50 °C	89 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter	CB CE PSE TUV
MEAN WELL USA Inc. HLN-40H-12A	3.33 A	12 V	PWM	3750 V	1	-40 °C	50 °C	86.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter
MEAN WELL USA Inc. HLN-40H-15A	2.67 A	15 VDC	PWM	3750 V	1	-40 °C	50 °C	86.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter
MEAN WELL USA Inc. HLN-40H-15B	2.67 A	15 VDC	Analog PWM	3750 V	1	-40 °C	50 °C	86.5 %	Constant Current Voltage	90 VAC	Chassis Mount	161 mm	61.5 mm	2.42 in	1.38 in	6.34 "	35 mm	40 W	OCP OTP OVP SCP	IP64	Wire Leads	305 VAC	AC DC Converter

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	32	$ 41.15

Description

General part information

HLN-40H Series

840mA 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
