R143730700

Active

Radiall USA, Inc.

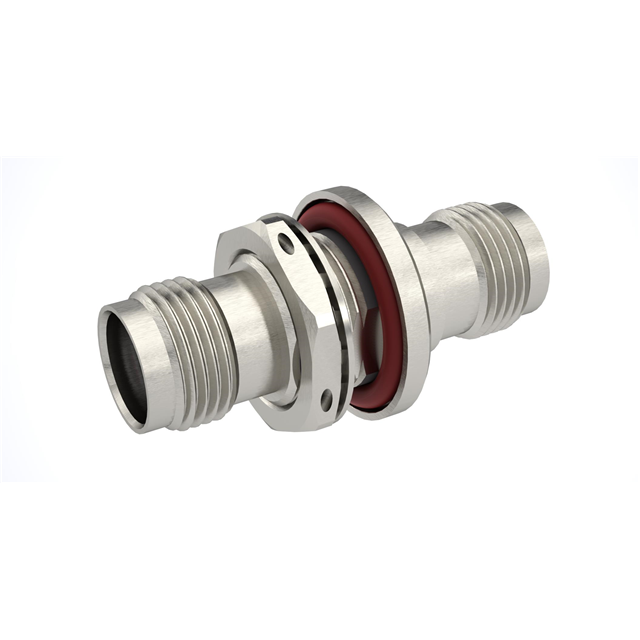

TNC18 FF STR BHDP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC18 FF STR BHDP

Technical Specifications

Parameters and characteristics for this part

Specification	R143730700

Adapter Series	TNC to TNC
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Series	Convert From (Adapter End)	Center Contact Material	Center Gender	Body Material	Impedance	Adapter Type	Conversion Type	Convert To (Adapter End)	Center Contact Plating	Style	Mating Cycles	Frequency - Max [Max]	Mounting Feature
Radiall USA, Inc. R143730700	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	TNC to TNC	TNC Jack Female Socket	Beryllium Copper	Female to Female	Stainless Steel	50 Ohms	Jack to Jack	Same Series	Female Socket TNC Jack	Gold	Straight	500	18 GHz	Bulkhead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
