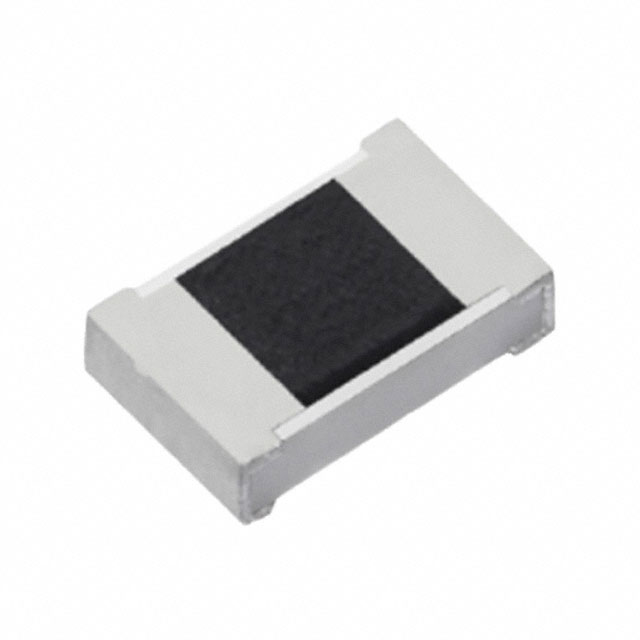

ERJ-P03D1503V

Active

Panasonic Electronic Components

RES SMD 150 KOHM 0.5% 1/5W 0603

ERJ-P03D1503V

Active

Panasonic Electronic Components

RES SMD 150 KOHM 0.5% 1/5W 0603

Description Specifications Series Pricing CAD Documents

Description

General part information

ERJ-P03 Series

150 kOhms ±0.5% 0.2W, 1/5W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film

Technical Specifications

Parameters and characteristics for this part

Specification	ERJ-P03D1503V

Composition	Thick Film
Features	Pulse Withstanding, Automotive AEC-Q200
Height - Seated (Max)	0.022 in
Number of Terminations	2
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	0603 (1608 Metric)
Package Name	0603
Power (Watts)	0.2 W
Power (Watts) Options	1/5W
Ratings	AEC-Q200
Resistance	150 kOhm
Size / Dimension Length	0.063 in
Size / Dimension Width	0.031 in
Temperature Coefficient	150 ppm/¯C
Tolerance	0.5 %

ERJ-P03 Series

...

Part	Tolerance	Size / Dimension Width	Size / Dimension Length	Composition	Features	Number of Terminations	Operating Temperature (Max)	Operating Temperature (Min)	Ratings	Package / Case	Power (Watts)	Power (Watts) Options	Package Name	Temperature Coefficient	Height - Seated (Max)	Resistance
Panasonic Electronic Components ERJ-P03D1503V	0.5 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	150 ppm/¯C	0.022 in	150 kOhm
Panasonic Electronic Components ERJ-P03D1152V	0.5 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	150 ppm/¯C	0.022 in	11.5 kOhm
Panasonic Electronic Components ERJ-P03J911V	5 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	200 ppm/°C	0.022 in	910 Ohm
Panasonic Electronic Components ERJ-P03D5621V	0.5 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	150 ppm/¯C	0.022 in	5.62 kOhm
Panasonic Electronic Components ERJ-P03D3301V	0.5 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	150 ppm/¯C	0.022 in	3.3 kOhm
Panasonic Electronic Components ERJ-P03F8663V	1 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	200 ppm/°C	0.022 in	866 kOhm
Panasonic Electronic Components ERJ-P03F8060V	1 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	200 ppm/°C	0.022 in	806 Ohm
Panasonic Electronic Components ERJ-P03F5602V	1 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	200 ppm/°C	0.022 in	56 kOhm
Panasonic Electronic Components ERJ-P03F5233V	1 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	200 ppm/°C	0.022 in	523 kOhm
Panasonic Electronic Components ERJ-P03D2100V	0.5 %	0.031 in	0.063 in	Thick Film	Automotive AEC-Q200 Pulse Withstanding	2	155 °C	-55 °C	AEC-Q200	0603 (1608 Metric)	0.2 W	1/5W	0603	150 ppm/¯C	0.022 in	210 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Fixed Resistors Catalog

Datasheet
