82-5589

Active

Amphenol RF

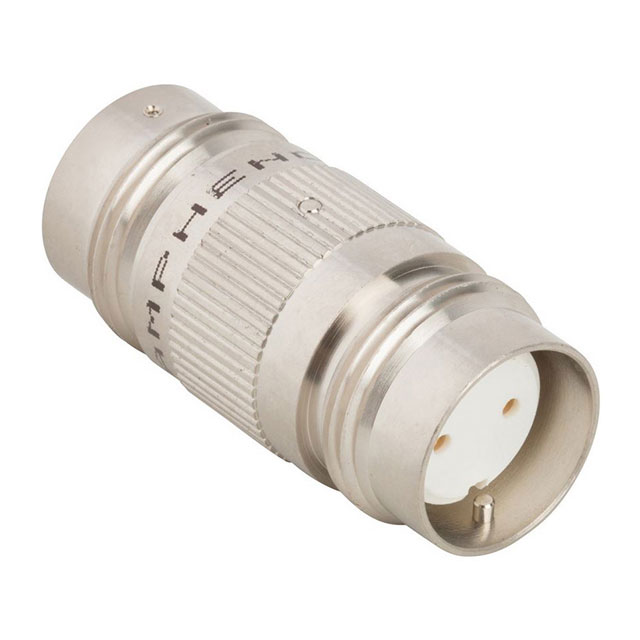

CONN N TWIN PLUG STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN N TWIN PLUG STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	82-5589

Body Finish	Nickel
Body Material	Brass
Cable Group	AA6079, 9207, AA-6026, AA6076, Belden 8227
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial, N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Clamp, 1 Insulator, 1 Connector, 2 Contacts, 1 Gasket, 1 Braid Clamp, 1 Sleeve
Ingress Protection	Weatherproof
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Clamp
Voltage Rating	500 V

Part	Dielectric Material	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Style	Convert To (Adapter End)	Mounting Type	Conversion Type	Frequency - Max [Max]	Adapter Series	Center Gender	Convert From (Adapter End)	Body Finish	Center Contact Plating	Impedance	Center Contact Material	Adapter Type	Cable Group	Shield Termination	Connector Style	Includes	Ingress Protection	Housing Color	Contact Termination	Voltage Rating	Number of Ports	Connector Type
Amphenol RF 82-5588	Polytetrafluoroethylene (PTFE)	Brass	-65 ░C	165 °C	Straight	Female Socket Twinaxial Jack	Free Hanging (In-Line)	Same Series	11 GHz	Twinaxial to Twinaxial	Female to Female	Twinaxial Jack Female Socket	Nickel	Gold	Non-Constant	Phosphor Bronze	Jack to Jack
Amphenol RF 82-5589-RFX	Polybutylene Terephthalate (PBT)	Brass					Free Hanging (In-Line)						Nickel	Gold	Non-Constant	Brass		9207 AA-6026 AA6076 AA6079 Belden 8227	Clamp	N Type Twinaxial	1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 1 Insulator 1 Sleeve 2 Contacts	Weatherproof	Silver	Solder	500 V	1	Male Pin Plug
Amphenol RF 82-5589		Brass					Free Hanging (In-Line)						Nickel	Gold	Non-Constant	Beryllium Copper Brass		9207 AA-6026 AA6076 AA6079 Belden 8227	Clamp	N Type Twinaxial	1 Braid Clamp 1 Clamp 1 Connector 1 Gasket 1 Insulator 1 Sleeve 2 Contacts	Weatherproof	Silver	Solder	500 V	1	Male Pin Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type, Twinaxial Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Solder
