6000-210023

Active

STORM INTERFACE

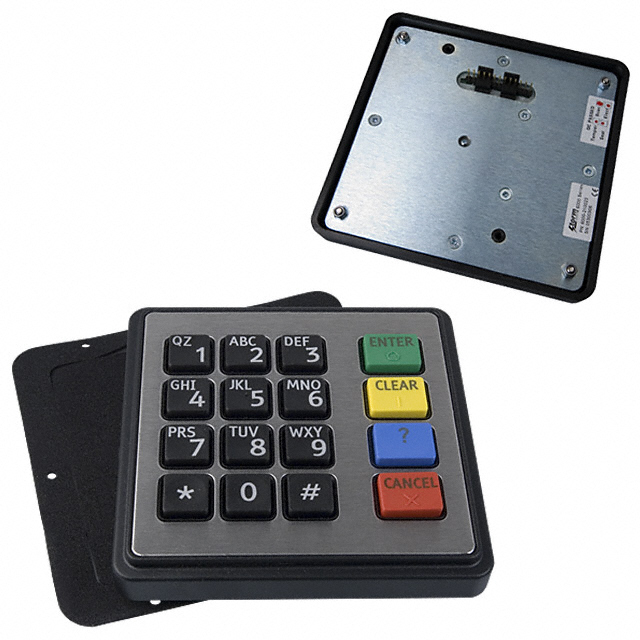

KEYPAD, 6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Search across all available documentation for this part.

Active

STORM INTERFACE

KEYPAD, 6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 139.49

General part information

Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	6000-210023	6000 Series

Accessory Type	-	Mounting Kit
Approval Agency	CE, cURus	CE, cURus
Contact Rating @ Voltage	0.05 A, 24 VDC	0.05 - 24 A
Features	Anti-Vandal	Anti-Vandal
For Use With/Related Products	-	6000 Series
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Key Color	Multiple	Multiple
Key Type	Polymer	Polymer
Legend	Telephone Format, Function Keys	Telephone Format, Function Keys
Legend Color	White, Black	White, Black
Legend Type	Fixed	Fixed
Matrix (Columns x Rows) [custom]	4	4
Matrix (Columns x Rows) [custom]	4	4
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Number of Keys	16	16
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-20 C	-20 C
Output Type	1.81 mOhm	1.81 mOhm
Panel Cutout Dimensions [x]	115 mm	115 mm
Panel Cutout Dimensions [y]	109.5 mm	109.5 mm
Switch Type	Conductive Rubber	Conductive Rubber
Termination Style	Pin Header	Pin Header

KEYPAD, 6000 SERIES, 4 X 4, MATRIX, 50 MA, 24 V

Part	Legend Color	Legend Type	Switch Type	Features	Key Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Illumination	Legend	Operating Temperature [Min]	Operating Temperature [Max]	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Termination Style	Number of Keys	Ingress Protection	Contact Rating @ Voltage	Key Color	Approval Agency	Output Type	Accessory Type	For Use With/Related Products
STORM INTERFACE 6000-210023	Black, White	Fixed	Conductive Rubber	Anti-Vandal	Polymer	115 mm	109.5 mm	Panel Mount, Rear	Non-Illuminated	Function Keys, Telephone Format	-20 C	60 °C	4	4	Pin Header	16	IP65 - Dust Tight, Water Resistant	0.05 A, 24 VDC	Multiple	CE, cURus	1.81 mOhm
STORM INTERFACE 6000-MK0003																						Mounting Kit	6000 Series
