796683-3

Active

TE Connectivity AMP Connectors

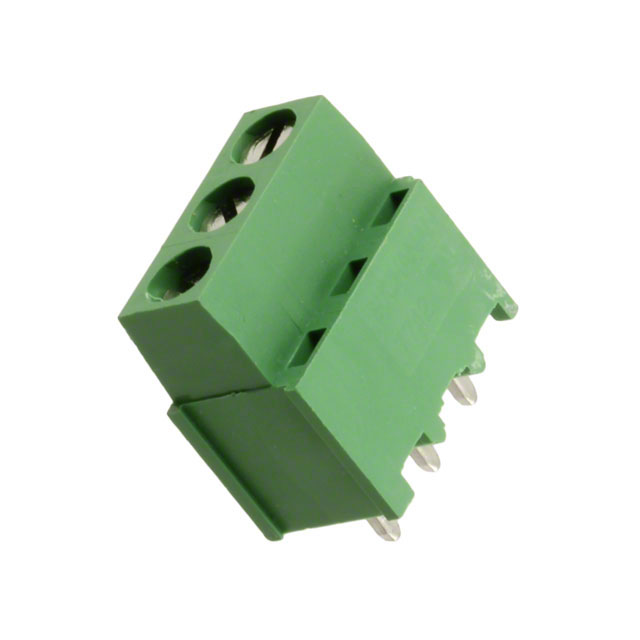

TERM BLK 3POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

796683-3

Active

TE Connectivity AMP Connectors

TERM BLK 3POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.24
		10	$ 1.16
		25	$ 1.12
		50	$ 1.11
		200	$ 1.00
		400	$ 0.97
		600	$ 0.88
		1000	$ 0.79
		5000	$ 0.71

Description

General part information

796683 Series

3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

No documents available

Specification	796683-3	796683 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side), Positions Stamped
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	3	3 - 23
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

Part	Features	Screw Thread	Current	Pitch [x]	Pitch [x]	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Color	Contact Material - Plating [custom]	Mounting Type	Number of Levels	Wire Termination	Screw Material - Plating	Voltage	Clamp Material - Plating	Positions Per Level
TE Connectivity AMP Connectors 1-796683-0	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	10
TE Connectivity AMP Connectors 1-796683-6	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	16
TE Connectivity AMP Connectors 1-796683-8	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	18
TE Connectivity AMP Connectors 796683-5	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	5
TE Connectivity AMP Connectors 1-796683-2	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	12
TE Connectivity AMP Connectors 796683-9	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	9
TE Connectivity AMP Connectors 796683-8	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	8
TE Connectivity AMP Connectors 796683-3	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	3
TE Connectivity AMP Connectors 2-796683-1	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	21
TE Connectivity AMP Connectors 3-796683-1	Interlocking (Side), Positions Stamped	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	12
