796683-9

Active

TE Connectivity AMP Connectors

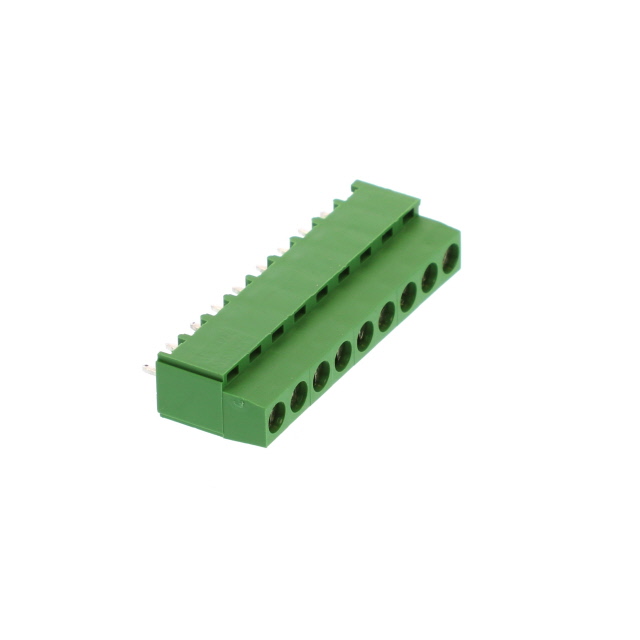

TERM BLK 9POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796683-9

Active

TE Connectivity AMP Connectors

TERM BLK 9POS SIDE ENTRY 5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.38
		10	$ 2.96
		25	$ 2.88
		50	$ 2.82
		100	$ 2.73

Description

General part information

796683 Series

9 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Specification	796683-9	796683 Series

Clamp Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Color	Green	Green
Contact Material - Plating [custom]	Brass - Tin Plated	Brass - Tin Plated
Current	17.5 A	17.5 A
Features	Interlocking (Side)	Interlocking (Side), Positions Stamped
Mating Orientation	Horizontal with Board	Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	9	3 - 23
Screw Material - Plating	Brass - Nickel Plated	Brass - Nickel Plated
Screw Thread	M3	M3
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Voltage	300 V	300 V
Wire Gauge [Max]	30 AWG	30 AWG
Wire Gauge [Min]	12 AWG	12 AWG
Wire Termination	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp

Part	Features	Screw Thread	Current	Pitch [x]	Pitch [x]	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Torque - Screw	Torque - Screw	Color	Contact Material - Plating [custom]	Mounting Type	Number of Levels	Wire Termination	Screw Material - Plating	Voltage	Clamp Material - Plating	Positions Per Level
TE Connectivity AMP Connectors 1-796683-0	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	10
TE Connectivity AMP Connectors 1-796683-6	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	16
TE Connectivity AMP Connectors 1-796683-8	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	18
TE Connectivity AMP Connectors 796683-5	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	5
TE Connectivity AMP Connectors 1-796683-2	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	12
TE Connectivity AMP Connectors 796683-9	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	9
TE Connectivity AMP Connectors 796683-8	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	8
TE Connectivity AMP Connectors 796683-3	Interlocking (Side)	M3	17.5 A	5 mm	0.197 in	Horizontal with Board	30 AWG	12 AWG	0.79 Nm	7 Lb-In	Green	Brass - Tin Plated	Through Hole	1	Screw - Rising Cage Clamp	Brass - Nickel Plated	300 V	Brass - Nickel Plated	3
