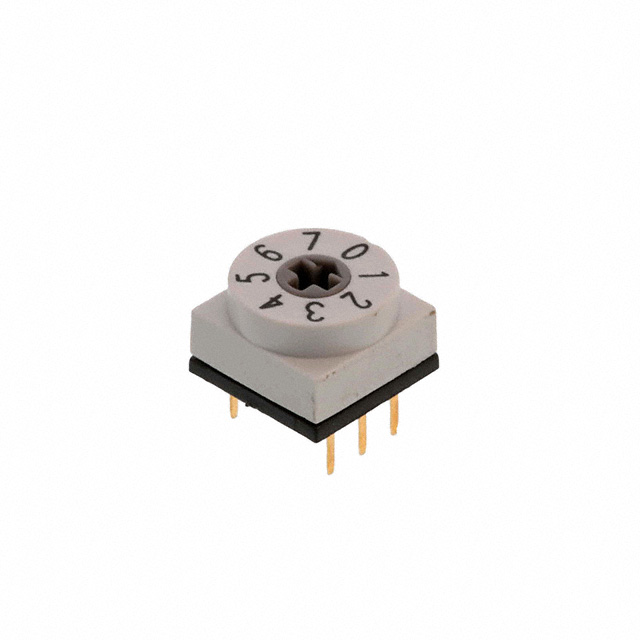

RDTCR08P1T
ActiveE-Switch
SW ROTARY DIP OCTAL 0.15A 42V
Deep-Dive with AI
Search across all available documentation for this part.
RDTCR08P1T
ActiveE-Switch
SW ROTARY DIP OCTAL 0.15A 42V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDTCR08P1T |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | Octal |
| Contact Finish | Gold |
| Electrical Life | 10000 Cycles |
| Features | IP67 - Dust Tight, Waterproof |
| Height Above Board | 0.256 in |
| Height Above Board | 6.5 mm |
| Length | 10 mm |
| Length | 0.394 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 42 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.15 | |
| 10 | $ 3.02 | |||
| 50 | $ 2.56 | |||
| 100 | $ 2.39 | |||
| 250 | $ 2.31 | |||
Description
General part information
RDTCR08 Series
Dip Switch Octal 8 Position Through Hole Rotary for Tool Actuator 150mA 42VDC
