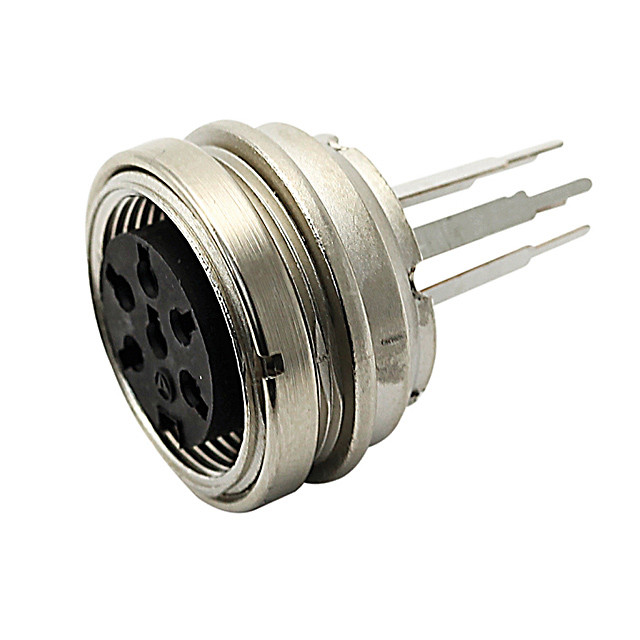

T 3403 430

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 6P SILVER SOLDER

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT FMALE 6P SILVER SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Primary Material	Color	Contact Finish - Mating	Orientation	Ingress Protection	Current Rating (Amps)	Shell Finish	Shell Material	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Shell Size - Insert	Shielding	Voltage Rating	Mounting Type	Mounting Feature
Amphenol Tuchel Industrial T 3403 902	Receptacle Female Sockets	Metal	Silver	Gold	Keyed	IP40	7 A	Nickel	Die Cast	Solder	100 °C	-40 °C	6	M16-6	Shielded	250 VDC	Panel Mount Right Angle Through Hole
Amphenol Tuchel Industrial T 3403 018	Receptacle Female Sockets	Metal	Silver	Gold	Keyed	IP40	7 A	Nickel	Die Cast		100 °C	-40 °C	6	M16-6	Shielded	250 VDC
Amphenol Tuchel Industrial T 3403 118	Receptacle Female Sockets	Metal	Silver	Gold	Keyed	IP40	7 A	Nickel	Die Cast		100 °C	-40 °C	6	M16-6	Shielded	250 VDC
Amphenol Tuchel Industrial T 3403 420	Receptacle Female Sockets	Metal	Silver	Silver	Keyed	IP40	7 A	Nickel	Die Cast	Solder	100 °C	-40 °C	6	M16-6	Shielded	250 VDC	Panel Mount Through Hole
Amphenol Tuchel Industrial T 3403 109	Receptacle Female Sockets	Metal	Silver	Silver	Keyed	IP40	7 A	Nickel	Die Cast		100 °C	-40 °C	6	M16-6	Shielded	250 VDC		Bulkhead - Front Side Nut
Amphenol Tuchel Industrial T 3403 430	Receptacle Female Sockets	Metal	Silver	Silver	Keyed	IP40	7 A	Nickel	Die Cast	Solder	100 °C	-40 °C	6	M16-6	Shielded	250 VDC	Panel Mount Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 8.86

General part information

6 Position Circular Connector Receptacle, Female Sockets Solder
