EHP.00.250.CTL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Search across all available documentation for this part.
EHP.00.250.CTL
ActiveLEMO
CONN NIMCAMAC RCPT STR 50 OHM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EHP.00.250.CTL |
|---|---|
| Body Finish | Chrome |
| Body Material | Brass |
| Center Contact Material | Bronze |
| Center Contact Plating | Gold |
| Connector Style | NIM-CAMAC CD/N 549 |
| Connector Type | Receptacle, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polyetheretherketone (PEEK) |
| Fastening Type | Push-Pull |
| Housing Color | Silver |
| Impedance | 50 Ohms |

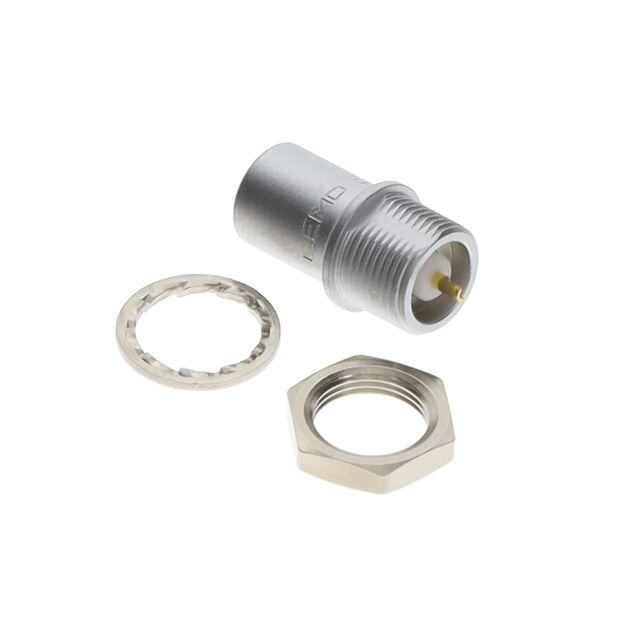

| Includes | 1 Nut, 1 Connector, 1 Lockwasher |
| Ingress Protection | IP50 |
| Mating Cycles | 5000 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 260 ░C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Solder |
| Voltage Rating | 700 VDC |
EHP.00.250 Series
CONN NIMCAMAC RCPT STR 50 OHM
| Part | Shield Termination | Connector Type | Center Contact Plating | Mounting Feature | Connector Style | Ingress Protection | Housing Color | Number of Ports | Center Contact Material | Includes | Dielectric Material | Voltage Rating | Fastening Type | Contact Termination | Mating Cycles | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EHP.00.250.CTL | Solder | Female Socket, Receptacle | Gold | Bulkhead - Front Side Nut | NIM-CAMAC CD/N 549 | IP50 | Silver | 1 | Bronze | 1 Connector, 1 Lockwasher, 1 Nut | Polyetheretherketone (PEEK) | 700 VDC | Push-Pull | Solder Cup | 5000 | Chrome | -55 °C | 260 ░C | Brass | 50 Ohms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.17 | |
| 10 | $ 11.41 | |||
| 25 | $ 11.04 | |||
Description
General part information
EHP.00.250 Series
NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount Solder Cup
