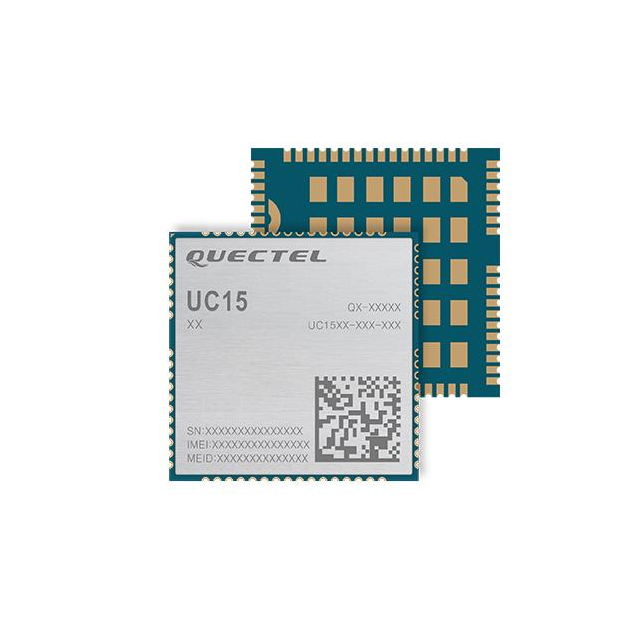

UC15AB-128-STD

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Search across all available documentation for this part.

Obsolete

Quectel

RF TXRX MODULE CELL SMD

Technical Specifications

Parameters and characteristics for this part

Part	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	RF Family/Standard	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Data Rate	Package / Case	Frequency	Sensitivity	Current - Transmitting	Serial Interfaces	Antenna Type
Quectel UC15EC-128-BT	1.8 mA	85 °C	-40 °C	Surface Mount	Cellular	33 dBm	4.3 V	3.3 V	EDGE GPRS GSM UMTS WCDMA	3.6 Mbps	Module	900 MHz 1800 MHz 2100 MHz	-110 dBm	1.8 mA	ADC PCM UART USB	Antenna Not Included
Quectel UC15ABTEA-128-STD	1.8 mA	85 °C	-40 °C	Surface Mount	Cellular	33 dBm	4.3 V	3.3 V	EDGE GPRS GSM UMTS WCDMA	3.6 Mbps	Module	850 MHz 900 MHz 1800 MHz 1900 MHz	-110 dBm	1.8 mA	ADC PCM UART USB	Antenna Not Included
Quectel UC15AB-128-STD	1.8 mA	85 °C	-40 °C	Surface Mount	Cellular	33 dBm	4.3 V	3.3 V	EDGE GPRS GSM UMTS WCDMA	3.6 Mbps	Module	850 MHz 900 MHz 1800 MHz 1900 MHz	-110 dBm	1.8 mA	ADC PCM UART USB	Antenna Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	250	$ 31.50

General part information

Cellular EDGE, GPRS, GSM, UMTS, WCDMA Transceiver Module 850MHz, 900MHz, 1.8GHz, 1.9GHz Antenna Not Included Surface Mount

Technical documentation and resources

No documents available
