1132C SL002

Active

ALPHA WIRE

MULT-PAIR 4COND 18AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULT-PAIR 4COND 18AWG SLATE 500'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1132C SL002	1132C Series

Cable Type	Multi-Pair	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	16	16
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm	0.889 mm
Jacket (Insulation) Thickness	0.035 in	0.035 in
Jacket Color	Slate	Slate
Length	-	1000 ft
Length	-	304.8 m
Length [x]	500 '	500 '
Length [x]	152.4 m	152.4 m
Number of Conductors	4	4
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-20 C	-20 C
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	18 AWG	18 AWG

MULTI-PAIR 4COND 18AWG 1000'

Part	Usage	Jacket (Insulation) Material	Wire Gauge	Voltage	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Insulation	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
ALPHA WIRE 1132C SL001	Communication, Control	Poly-Vinyl Chloride (PVC)	18 AWG	300 V	Multi-Pair	16	30 AWG	4	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	-20 C	80 C	Copper, Tinned	Slate	0.889 mm	0.035 in
ALPHA WIRE 1132C SL002	Communication, Control	Poly-Vinyl Chloride (PVC)	18 AWG	300 V	Multi-Pair	16	30 AWG	4	Poly-Vinyl Chloride (PVC)			-20 C	80 C	Copper, Tinned	Slate	0.889 mm	0.035 in	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 1.80

General part information

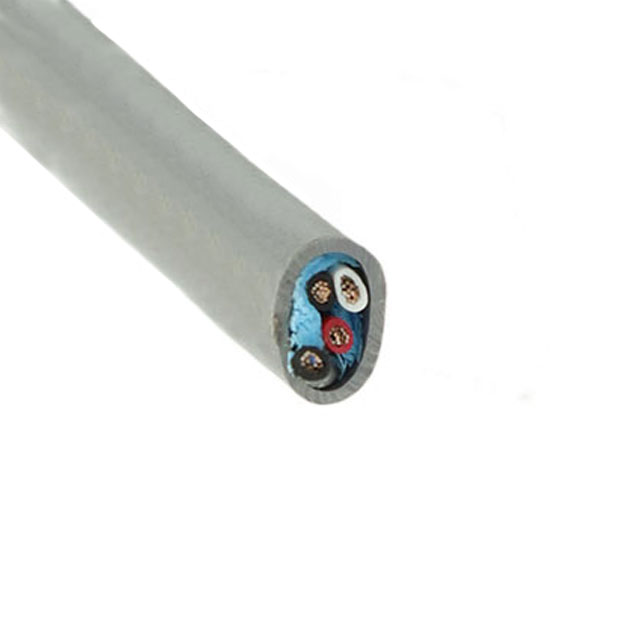

4 (2 Pair Twisted) Conductor Multi-Pair Cable Slate 18 AWG 500.0' (152.4m)
