M7566-46

Active

Harwin Inc.

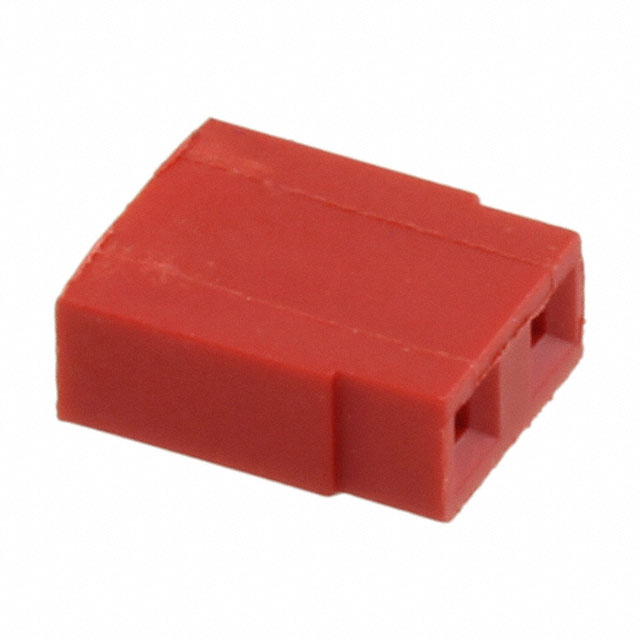

2 POS. FEMALE JUMPER SOCKET, OPEN SHUNT, RED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

2 POS. FEMALE JUMPER SOCKET, OPEN SHUNT, RED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M7566-46

Color	Red
Contact Finish	Tin
Contact Finish Thickness	3 µm
Contact Finish Thickness	118.1 µin
Current Rating (Amps)	3 A
Gender	Female Sockets
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Type	Open Top
Voltage Rating	250 VDC

Part	Voltage Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Material Flammability Rating	Type	Color	Contact Finish	Gender
Harwin Inc. M7566-46	250 VDC	1 x 2	2	3 A	3 µm	118.1 µin	2.54 mm	0.1 in	UL94 V-0	Open Top	Red	Tin	Female Sockets

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Red Open Top 0.100" (2.54mm) Tin
