1534-R

Active

BRADY

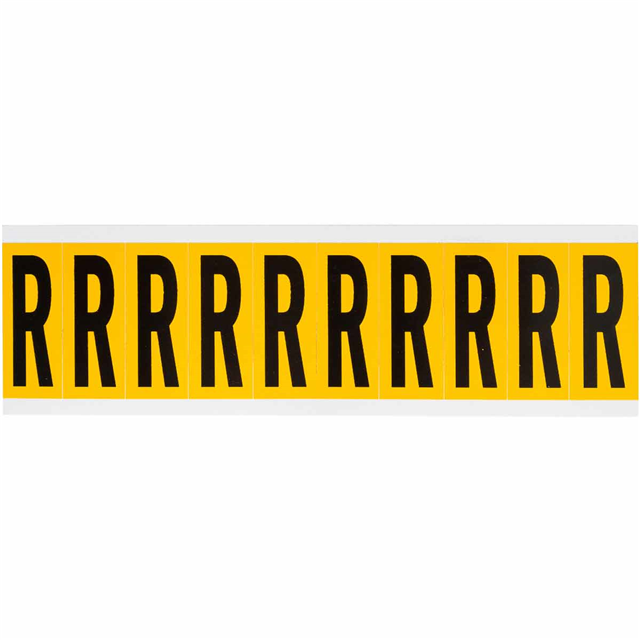

B946 N&L BLK/YEL 1534-R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1534-R

Active

BRADY

B946 N&L BLK/YEL 1534-R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.05

Description

General part information

1534 Series

B946 N&L BLK/YEL 1534-R

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1534-R	1534 Series

Application Specifics	Alpha/Numeric	Alpha/Numeric, Directionality
Applications	General	General
Arrangement	Text Only	Text Only, Symbol and Text
Color - Background	Yellow	Yellow
Color - Legend	Black	Black
Features	Chemical Resistant, Abrasion Resistant, Weather Resistant, UV Resistant	Chemical Resistant, Abrasion Resistant, Weather Resistant, UV Resistant
Language	English	English
Legend (Symbol Only)	False	False
Legend (Symbol Only)	-	Directional Arrow
Legend (Text)	R	H, M, No Text, Arrow Symbol, I, D, 7, R, B, C, 3, V, K
Legend (Text)	-	8
Legend (Text)	-	True
Length	2.25 in	2.25 in
Length	57.15 mm	57.15 mm
Location	Indoor/Outdoor	Indoor/Outdoor, Outdoor
Material - Body	Vinyl	Vinyl
Mounting Type	Adhesive	Adhesive
Print Type	Pre-Printed	Pre-Printed
Shape	Rectangle	Rectangle
Width [y]	22.23 mm	22.23 mm
Width [y]	0.875 in	0.875 in

1534 Series

B946 N&L BLK/YEL 1534-H

Part	Color - Background	Print Type	Application Specifics	Material - Body	Arrangement	Shape	Language	Features	Color - Legend	Applications	Length	Length	Legend (Text)	Mounting Type	Width [y]	Width [y]	Location	Legend (Text)	Legend (Symbol Only)
BRADY 1534-H	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	H	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-8	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm		Adhesive	22.23 mm	0.875 in	Indoor/Outdoor	8
BRADY 1534-M	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	M	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-DSH	Yellow	Pre-Printed	Alpha/Numeric	Vinyl		Rectangle		Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	No Text	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-ARO	Yellow	Pre-Printed	Directionality	Vinyl	Symbol and Text	Rectangle		Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	Arrow Symbol	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor		Directional Arrow
BRADY 1534-I	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	I	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-D	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	D	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-7	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	7	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-R	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	R	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
BRADY 1534-B	Yellow	Pre-Printed	Alpha/Numeric	Vinyl	Text Only	Rectangle	English	Abrasion Resistant, Chemical Resistant, UV Resistant, Weather Resistant	Black	General	2.25 in	57.15 mm	B	Adhesive	22.23 mm	0.875 in	Indoor/Outdoor
