TRA 3 Series

Isolated DC/DC Converters - Through Hole

Part	Mounting Type	Features	Package Leads	Package Name	Applications	Voltage - Input (Max)	Type	Current - Output (Max)	Efficiency	Voltage - Output 1	Voltage - Input (Min)	Voltage - Isolation	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Number of Outputs	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)

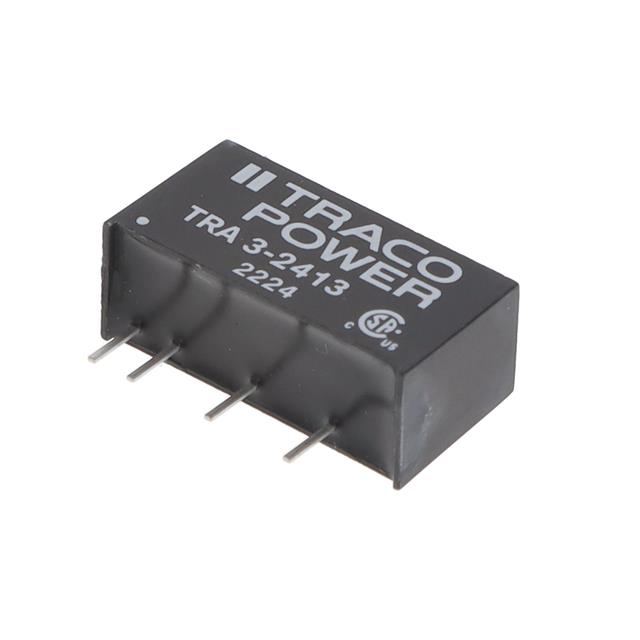

Traco Power TRA 3-2413	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	26.4 V	Isolated Module	200 mA	85 %	15 V	21.6 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W
Traco Power TRA 3-2412	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	26.4 V	Isolated Module	250 mA	85.5 %	12 V	21.6 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W
Traco Power TRA 3-0511	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	5.5 V	Isolated Module	600 mA	83 %	5 V	4.5 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W
Traco Power TRA 3-1213	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	13.2 V	Isolated Module	200 mA	89 %	15 V	10.8 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W
Traco Power TRA 3-0513	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	5.5 V	Isolated Module	200 mA	87.5 %	15 V	4.5 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W
Traco Power TRA 3-2419	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	26.4 V	Isolated Module	333 mA	85 %	9 V	21.6 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W
Traco Power TRA 3-2411	Through Hole	SCP	4 Leads	6-SIP Module	ITE (Commercial)	26.4 V	Isolated Module	600 mA	82 %	5 V	21.6 V	1000 Vrms	0.77 in	0.4 in	0.3 in	1	95 °C	-40 °C	3 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.
