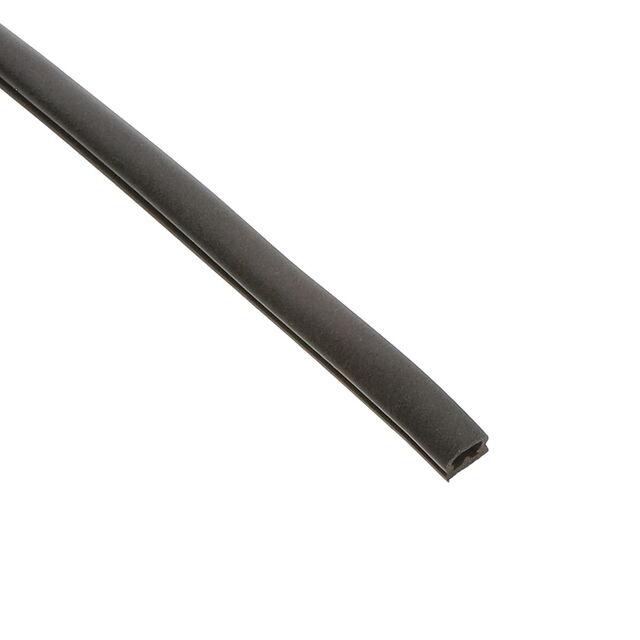

19-05-14587-S6305
ActiveParker Chomerics
RFI GASKET ELASTOMER NICKEL
Deep-Dive with AI
Search across all available documentation for this part.
19-05-14587-S6305
ActiveParker Chomerics
RFI GASKET ELASTOMER NICKEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 19-05-14587-S6305 | 19-05 Series |
|---|---|---|
| Attachment Method | No Adhesive | No Adhesive |
| Height [z] | 8.23 mm | 3.68 - 8.23 mm |
| Height [z] | 0.324 " | 0.145 - 0.324 in |
| Material | Conductive Elastomer | Conductive Elastomer |
| Operating Temperature [Max] | 66 °C | 66 °C |
| Operating Temperature [Min] | -29 °C | -29 °C |
| Plating | Nickel | Nickel |
| Shape | D-Shape | D-Shape |
| Thickness - Overall | - | 0.146 - 0.324 in |
| Thickness - Overall | - | 3.68 - 8.23 mm |
| Type | Gasket | Gasket |
| Width | 12.37 mm | 12.37 mm |
| Width | 0.487 in | 0.487 in |
| Width | - | 6.25 mm |
| Width | - | 0.246 in |
19-05 Series
RFI GASKET ELASTOMER NICKEL
| Part | Plating | Operating Temperature [Max] | Operating Temperature [Min] | Shape | Width [y] | Width [y] | Type | Material | Height [z] | Height [z] | Attachment Method | Thickness - Overall | Thickness - Overall | Width | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Parker Chomerics 19-05-11440-S6305 | Nickel | 66 °C | -29 °C | D-Shape | 6.25 mm | 0.246 in | Gasket | Conductive Elastomer | 3.68 mm | 0.145 in | No Adhesive | ||||
Parker Chomerics 19-05-11440-1298 | 66 °C | -29 °C | D-Shape | 6.25 mm | 0.246 in | Gasket | 0.146 in | 3.68 mm | |||||||
Parker Chomerics 19-05-14587-1298 | 66 °C | -29 °C | D-Shape | Gasket | 0.324 in | 8.23 mm | 12.37 mm | 0.487 in | |||||||
Parker Chomerics 19-05-11440-6502 | Nickel | 66 °C | -29 °C | D-Shape | 6.25 mm | 0.246 in | Gasket | Conductive Elastomer | 3.68 mm | 0.145 in | No Adhesive | ||||
Parker Chomerics 19-05-14587-S6305 | Nickel | 66 °C | -29 °C | D-Shape | Gasket | Conductive Elastomer | 8.23 mm | 0.324 " | No Adhesive | 12.37 mm | 0.487 in | ||||
Parker Chomerics 19-05-14587-6502 | Nickel | 66 °C | -29 °C | D-Shape | Gasket | Conductive Elastomer | 8.23 mm | 0.324 " | No Adhesive | 12.37 mm | 0.487 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 22.09 | |
| 10 | $ 16.16 | |||
| 25 | $ 14.64 | |||
| 100 | $ 12.94 | |||
| 250 | $ 12.12 | |||
| 500 | $ 11.86 | |||
Description
General part information
19-05 Series
RFI GASKET ELASTOMER NICKEL
