19-05-11440-1298

Active

Parker Chomerics

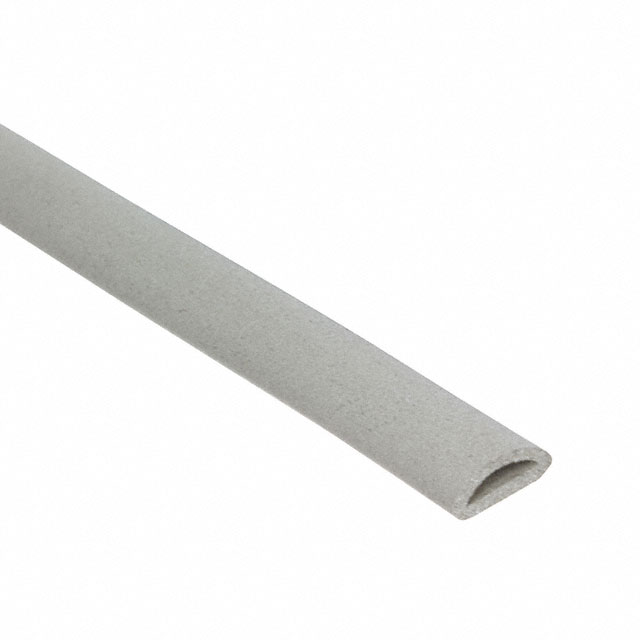

RF EMI GASKET 12" X 0.246"

Search across all available documentation for this part.

Active

Parker Chomerics

RF EMI GASKET 12" X 0.246"

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 19.48

General part information

RF EMI Gasket CHO-SEAL® 1298 Silicone Elastomer 0.246" (6.25mm) X 12.000" (304.80mm) X 0.146" (3.68mm)

Technical documentation and resources

Part	Plating	Operating Temperature [Max]	Operating Temperature [Min]	Shape	Width [y]	Width [y]	Type	Material	Height [z]	Height [z]	Attachment Method	Thickness - Overall	Thickness - Overall	Width	Width
Parker Chomerics 19-05-11440-S6305	Nickel	66 °C	-29 °C	D-Shape	6.25 mm	0.246 in	Gasket	Conductive Elastomer	3.68 mm	0.145 in	No Adhesive
Parker Chomerics 19-05-11440-1298		66 °C	-29 °C	D-Shape	6.25 mm	0.246 in	Gasket					0.146 in	3.68 mm
Parker Chomerics 19-05-14587-1298		66 °C	-29 °C	D-Shape			Gasket					0.324 in	8.23 mm	12.37 mm	0.487 in
Parker Chomerics 19-05-11440-6502	Nickel	66 °C	-29 °C	D-Shape	6.25 mm	0.246 in	Gasket	Conductive Elastomer	3.68 mm	0.145 in	No Adhesive
Parker Chomerics 19-05-14587-S6305	Nickel	66 °C	-29 °C	D-Shape			Gasket	Conductive Elastomer	8.23 mm	0.324 "	No Adhesive			12.37 mm	0.487 in
Parker Chomerics 19-05-14587-6502	Nickel	66 °C	-29 °C	D-Shape			Gasket	Conductive Elastomer	8.23 mm	0.324 "	No Adhesive			12.37 mm	0.487 in
