A-DS 09 PP/Z

Active

Assmann WSW Components

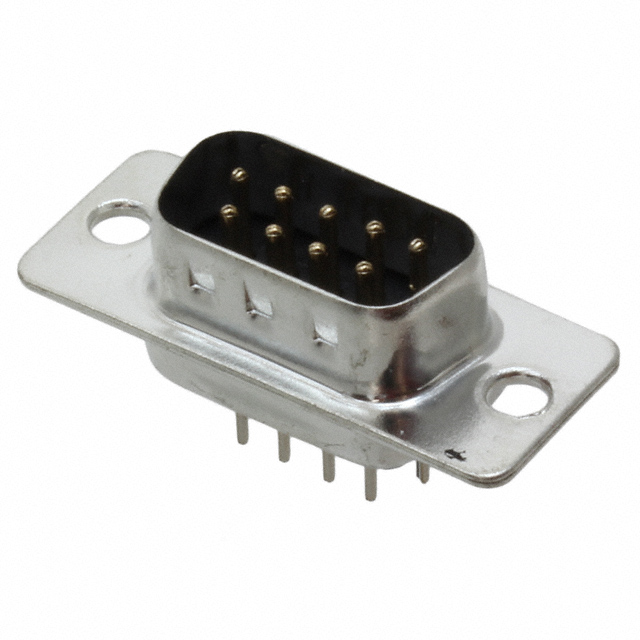

CONN D-SUB PLUG 9POS VERT SOLDER

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN D-SUB PLUG 9POS VERT SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	A-DS 09 PP/Z

Color	Gray
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Color	Flange Feature	Number of Rows	Number of Positions	Material Flammability Rating	Contact Material	Connector Type	Contact Finish	Termination	Features	Dielectric Material	Connector Style	Current Rating (Amps)	Voltage Rating	Contact Type	Backset Spacing	Backset Spacing
Assmann WSW Components A-DS 09 PP/Z	Flash	DE E	1	Through Hole	-20 C	105 ░C	Gray	Housing/Shell (Unthreaded)	2	9	UL94 V-0	Brass	Male Pins Plug	Gold	Solder	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	3 A	250 VDC	Signal
Assmann WSW Components A-DS 09 A/KG-T2S	Flash	DE E	1	Through Hole Right Angle	-55 °C	105 ░C	Black	Female Screwlock (4-40) Mating Side	2	9	UL94 V-0	Brass	Male Pins Plug	Gold	Solder	Board Lock Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	3 A	250 VDC	Signal	0.319 in	8.1 mm
Assmann WSW Components A-DS 09 PP/Z-BK	Flash	DE E	1	Through Hole	-55 °C	105 ░C	Black	Housing/Shell (Unthreaded)	2	9	UL94 V-0	Copper Alloy	Male Pins Plug	Gold	Solder	Grounding Indents	Polybutylene Terephthalate (PBT) Glass Filled	D-Sub	3 A	250 VAC	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
