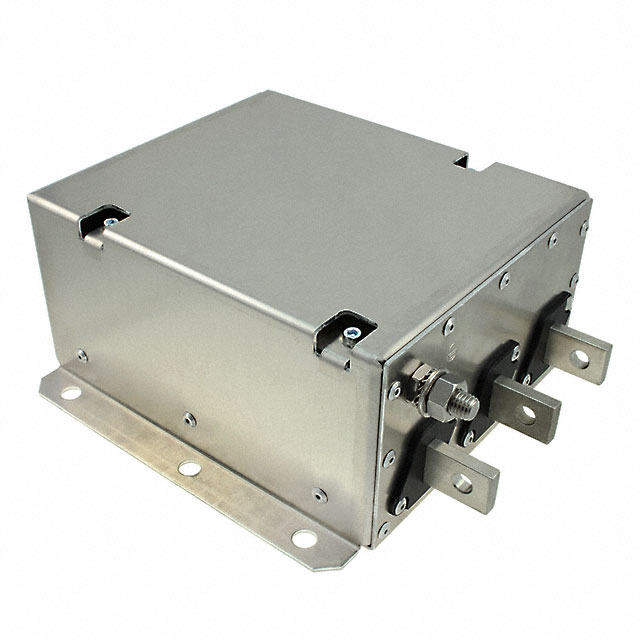

400APS12P

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 690VAC 400A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 690VAC 400A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	400APS12P

Applications	General Purpose
Configuration	Three Stage
Current	400 A
Filter Type	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Termination Style	Terminal Post
Voltage - Rated AC	690 V

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Mounting Type	Applications	Current	Voltage - Rated AC	Termination Style	Filter Type	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]
TE Connectivity Raychem Cable Protection 400APS12P	60 Hz	50 Hz	Three Stage	Chassis Mount	General Purpose	400 A	690 V	Terminal Post	Three Phase (Delta)	-10 °C	50 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 1003.45

General part information

Three Phase (Delta) EMC/EMI Line Filter 400 A 690V 50/60Hz Three Stage Terminal Post
