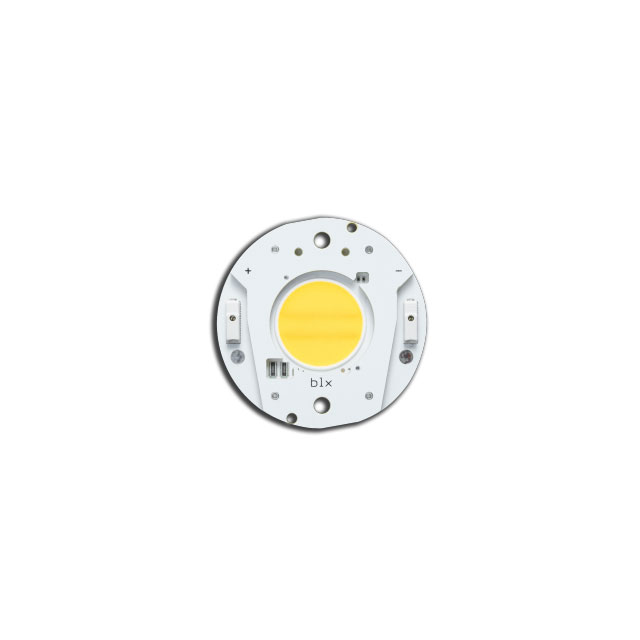

BXRV-DR-1830G-4000-A-13-S2

Active

BRIDGELUX

LED COB VESTA SE WM WH RND 1800K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRV-DR-1830G-4000-A-13-S2

Active

BRIDGELUX

LED COB VESTA SE WM WH RND 1800K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.49
		10	$ 15.43
		80	$ 13.26
		440	$ 12.13

Description

General part information

BXRV-DR-18 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Vesta™ SE White, Warm Round

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRV-DR-1830G-4000-A-13-S2	BXRV-DR-18 Series

CCT (K)	3000 K, 1800 K	1800 - 4000 K
CCT (K)	-	3000 K
CCT (K)	-	1800 K
Color	White, Warm	White, Warm, White, Neutral, White, Warm, Neutral
Configuration	Round	Rectangle, Round, Square
CRI (Color Rendering Index)	90	90 - 95
Current - Max [Max]	1.4 A	1.05 - 720 mA
Current - Test	1.29 A	1.29 - 950 mA
Features	With Holder	With Holder
Height [z]	3.8 mm	1.65 - 3.8 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	18.3 mm	9.1 - 18.3 mm
Lumens/Watt @ Current - Test	112 lm/W	81.7 - 118 lm/W
Luminous Flux @ Current/Temperature	4887 lm	438 - 4887 lm
Size / Dimension	-	12 - 20 mm
Size / Dimension	-	15 - 24 mm
Size / Dimension [diameter]	45 mm	30.8 - 45 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB), LED Module
Viewing Angle	110 °	110 - 130 °
Voltage - Forward (Vf) (Typ)	33.8 V	18 - 34.8 V

BXRV-DR-18 Series

LED MODULES UNI-COLOR WHITE 2-PIN TRAY

Part	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Type	CRI (Color Rendering Index)	Height [z]	Configuration	Viewing Angle	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Lens Type	CCT (K)	Color	Current - Test	Size / Dimension [y]	Size / Dimension [x]	CCT (K) [Max]	CCT (K) [Min]	Features	Size / Dimension [diameter]	Voltage - Forward (Vf) (Typ)
BRIDGELUX BXRV-DR-1827H-1000-A-13	420 mA	9.3 mm	Chip On Board (COB)	95	1.7 mm	Rectangle	110 °	494 lm	83 lm/W	Flat	2250 K	Warm, White	350 mA	12 mm	15 mm
BRIDGELUX BXRV-DR-1830G-1000-A-13	420 mA	9.3 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	684 lm	115 lm/W	Flat	2400 K	Warm, White	350 mA	12 mm	15 mm	3000 K	1800 K
BRIDGELUX BXRV-DR-1830H-1000-A-13-S2	420 mA	9.1 mm	Chip On Board (COB)	95	3.8 mm	Round	110 °	539 lm	91 lm/W	Flat	1800 K, 3000 K	Warm, White	350 mA					With Holder	30.8 mm
BRIDGELUX BXRV-DR-1827G-1000-A-13	420 mA	9.3 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	613 lm	103 lm/W	Flat	2250 K	Warm, White	350 mA	12 mm	15 mm
BRIDGELUX BXRV-DR-1830G-4000-A-13-S2	1.4 A	18.3 mm	Chip On Board (COB)	90	3.8 mm	Round	110 °	4887 lm	112 lm/W	Flat	1800 K, 3000 K	Warm, White	1.29 A					With Holder	45 mm	33.8 V
BRIDGELUX BXRV-DR-1827G-2000-A-13	720 mA	14 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	2111 lm	105 lm/W	Flat	2250 K	Warm, White	600 mA	20 mm	24 mm					33.5 V
BRIDGELUX BXRV-DR-1830H-1000-A-13	420 mA	9.3 mm	Chip On Board (COB)	95	1.7 mm	Rectangle	110 °	570 lm	96 lm/W	Flat	2400 K	Warm, White	350 mA	12 mm	15 mm	3000 K	1800 K
BRIDGELUX BXRV-DR-1827G-0600-A-13	420 mA	9.3 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	613 lm	103 lm/W	Flat	1800 K, 2700 K	Warm, White	350 mA	12 mm	15 mm
BRIDGELUX BXRV-DR-1830G-3000-A-13	1.05 A	16.2 mm	Chip On Board (COB)	90	1.7 mm	Rectangle	110 °	3725 lm	115 lm/W	Flat	2400 K	Warm, White	950 mA	20 mm	24 mm	3000 K	1800 K			34.1 V
BRIDGELUX BXRV-TR-1840G-20A0-A-25	700 mA	10 mm	Chip On Board (COB)	90	1.65 mm	Square	130 °			Flat	1800 K, 4000 K	White, Neutral, White, Warm	500 mA	15.9 mm	15.9 mm
