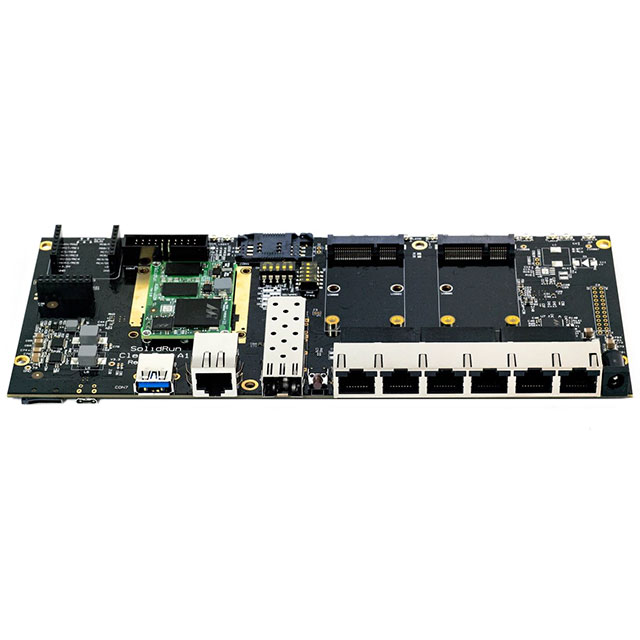

Specification	SRM6828S00D01GE000P00CH

Contents	SD Card
Core Processor	ARM Cortex-A9 Dual, ARMADA A388
Ethernet Connector	RJ45 (7)
Ethernet Ports	7
Expansion Site/Bus	mPCIe, mSATA
Number of Cores	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
RAM Capacity	12 GB
RAM Installed	1 GB
Size / Dimension Length	8.86 in
Size / Dimension Width	3.94 in
Speed	1.6 GHz
Storage Interface	M.2, uSD, eMMC
USB	USB 3.0, USB 2.0
USB 2.0 Count	3 count
USB 3.0 Count	3 count

SRM6828S00D01GE Series

Part	RAM Capacity	Watchdog Timer	Speed	Ethernet Ports	Ethernet Connector	USB 3.0 Count	USB	Storage Interface	Size / Dimension Width	Size / Dimension Length	Operating Temperature (Min)	Operating Temperature (Max)	Core Processor	Expansion Site/Bus	Contents	Number of Cores	Cooling Type
SolidRun LTD SRM6828S00D01GE016P01IE	1 GB	No	1.6 GHz	6	GbE (1) RJ45 (10/100/1000)	1 count	micro USB USB 3.0	eMMC microSD mSATA	4.134 in	10.039 in	-40 °C	85 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe mSATA SIM	SD Card	2
SolidRun LTD SRM6828S00D01GE016B03IE	1 GB	No	1.6 GHz	3	GbE (1) RJ45 (10/100/1000) (2)	1 count	micro USB USB 3.0	eMMC microSD	3.15 in	4.724 in	-40 °C	85 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe SIM	SD Card	2
SolidRun LTD SRM6828S00D01GE032P01CH	1 GB	No	1.6 GHz	6	GbE (1) RJ45 (10/100/1000)	1 count	micro USB USB 3.0	eMMC microSD mSATA	3.937 in	8.858 in	0 °C	70 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe mSATA SIM	SD Card	2	Heat Sink
SolidRun LTD SRM6828S00D01GE016B03CH	1 GB	No	1.6 GHz	3	GbE (1) RJ45 (10/100/1000) (2)	1 count	micro USB USB 3.0	eMMC microSD	2.756 in	3.937 in	0 °C	70 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe SIM	SD Card	2	Heat Sink
SolidRun LTD SRM6828S00D01GE008P01IE	1 GB	No	1.6 GHz	6	GbE (1) RJ45 (10/100/1000)	1 count	micro USB USB 3.0	eMMC microSD mSATA	4.134 in	10.039 in	-40 °C	85 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe mSATA SIM	SD Card	2
SolidRun LTD SRM6828S00D01GE032B03CH	1 GB	No	1.6 GHz	3	GbE (1) RJ45 (10/100/1000) (2)	1 count	micro USB USB 3.0	eMMC microSD	2.756 in	3.937 in	0 °C	70 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe SIM	SD Card	2	Heat Sink
SolidRun LTD SRM6828S00D01GE000B01CH	1 GB		1.6 GHz			1 count	USB 3.0	SPI	2.953 in	4.055 in	0 °C	70 °C	ARM Cortex-A9 Dual ARMADA A388	I2S PCIe SPI UART		2	Heat Sink
SolidRun LTD SRM6828S00D01GE008P01IH	1 GB	No	1.6 GHz	6	GbE (1) RJ45 (10/100/1000)	1 count	micro USB USB 3.0	eMMC microSD mSATA	3.937 in	8.858 in	-40 °C	85 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe mSATA SIM	SD Card	2	Heat Sink
SolidRun LTD SRM6828S00D01GE016P01IH	1 GB	No	1.6 GHz	6	GbE (1) RJ45 (10/100/1000)	1 count	micro USB USB 3.0	eMMC microSD mSATA	3.937 in	8.858 in	-40 °C	85 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe mSATA SIM	SD Card	2	Heat Sink
SolidRun LTD SRM6828S00D01GE032B03CE	1 GB	No	1.6 GHz	3	GbE (1) RJ45 (10/100/1000) (2)	1 count	micro USB USB 3.0	eMMC microSD	3.15 in	4.724 in	0 °C	70 °C	ARM Cortex-A9 Dual ARMADA A388	M.2 microSD mikroBUS™ mPCIe SIM	SD Card	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

SRM6828S00D01GE000P00CH | Datasheet
