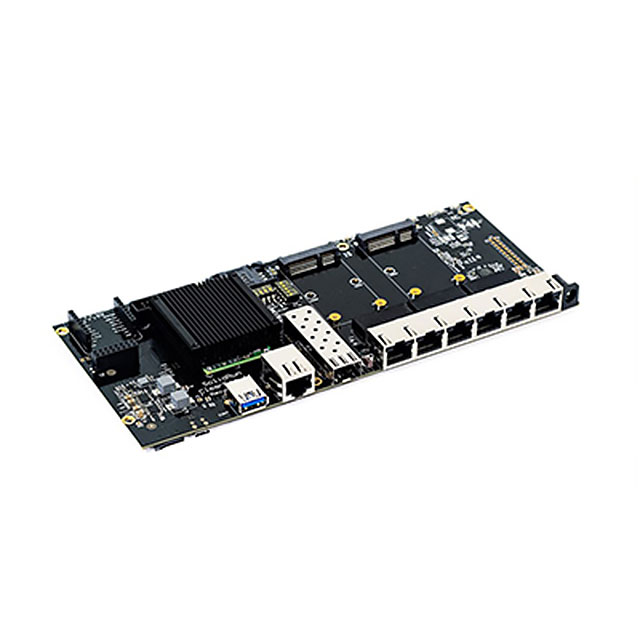

SRM6828S00D01GE000B01CH

Active

SolidRun LTD

SBC 1.6GHZ 2 CORE 1GB/0GB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRM6828S00D01GE000B01CH

Active

SolidRun LTD

SBC 1.6GHZ 2 CORE 1GB/0GB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRM6828S00D01GE000B01CH

Cooling Type	Heat Sink
Core Processor	ARMADA A388, ARM Cortex-A9 Dual
Expansion Site/Bus	I2S, PCIe, SPI, UART
Number of Cores	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	0 GB, 1 GB
Size / Dimension [x]	102.99 mm
Size / Dimension [x]	4.055 in
Size / Dimension [y]	2.953 in
Size / Dimension [y]	75 mm
Speed	1.6 GHz
Storage Interface	SPI
USB	USB 3.0 (1)

SRM6828S00D01GE Series

Part	Cooling Type	Expansion Site/Bus	RAM Capacity/Installed	Core Processor	Contents	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]	Ethernet	Ethernet	USB	Number of Cores	Speed
SolidRun LTD SRM6828S00D01GE032P01CH	Heat Sink	M.2 microSD mikroBUS™ mPCIe mSATA SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	3.937 in	225 mm	100 mm	8.858 in	eMMC microSD mSATA	70 °C	0 °C	10/100/1000 GbE (1) RJ45	5	Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE016B03CH	Heat Sink	M.2 microSD mikroBUS™ mPCIe SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	2.756 in	100 mm	70 mm	3.937 in	eMMC microSD	70 °C	0 °C	GbE (1) RJ45 (10/100/1000) (2)		Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE008P01IE		M.2 microSD mikroBUS™ mPCIe mSATA SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	4.134 "	255 mm	105 mm	10.039 in	eMMC microSD mSATA	85 °C	-40 °C	10/100/1000 GbE (1) RJ45	5	Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE000B01CH	Heat Sink	I2S PCIe SPI UART	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388		2.953 in	102.99 mm	75 mm	4.055 in	SPI	70 °C	0 °C			USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE016P01IH	Heat Sink	M.2 microSD mikroBUS™ mPCIe mSATA SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	3.937 in	225 mm	100 mm	8.858 in	eMMC microSD mSATA	85 °C	-40 °C	10/100/1000 GbE (1) RJ45	5	Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE032B03CE		M.2 microSD mikroBUS™ mPCIe SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	3.15 in	120 mm	80 mm	4.724 "	eMMC microSD	70 °C	0 °C	GbE (1) RJ45 (10/100/1000) (2)		Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE000B03CE		M.2 microSD mikroBUS™ mPCIe SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	3.15 in	120 mm	80 mm	4.724 "	microSD	70 °C	0 °C	GbE (1) RJ45 (10/100/1000) (2)		Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE016P01CE		M.2 microSD mikroBUS™ mPCIe mSATA SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	4.134 "	255 mm	105 mm	10.039 in	eMMC microSD mSATA	70 °C	0 °C	10/100/1000 GbE (1) RJ45	5	Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE128P01CE		M.2 microSD mikroBUS™ mPCIe mSATA SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	4.134 "	255 mm	105 mm	10.039 in	eMMC microSD mSATA	70 °C	0 °C	10/100/1000 GbE (1) RJ45	5	Micro USB (1) USB 3.0 (1)	2	1.6 GHz
SolidRun LTD SRM6828S00D01GE064P01IH	Heat Sink	M.2 microSD mikroBUS™ mPCIe mSATA SIM	0 GB 1 GB	ARM Cortex-A9 Dual ARMADA A388	SD Card	3.937 in	225 mm	100 mm	8.858 in	eMMC microSD mSATA	85 °C	-40 °C	10/100/1000 GbE (1) RJ45	5	Micro USB (1) USB 3.0 (1)	2	1.6 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SRM6828S00D01GE Series

Single Board Computer 1.6GHz 2 Core 1GB/0GB RAM ARMADA A388, ARM Cortex-A9 Dual

Documents

Technical documentation and resources
